Please send RFQ , we will respond immediately.

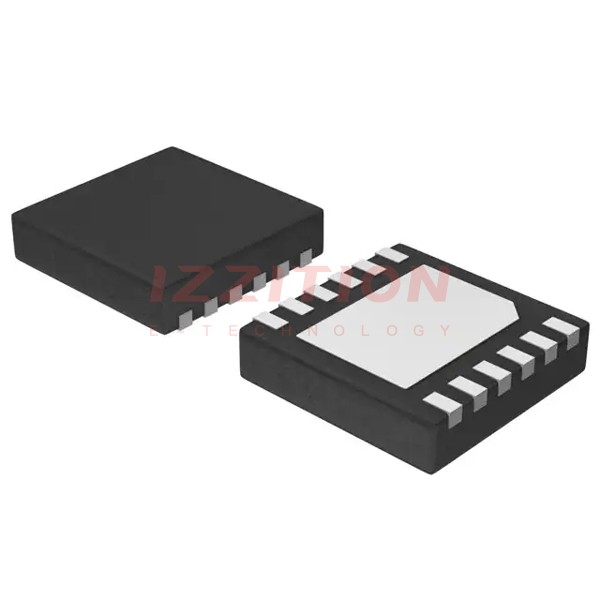

| Part Number | CAT3643HV2-GT2 | CAT3643HV2-T2 | CAT3643HV3-GT2 |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete |
| Type | DC DC Regulator | - | DC DC Regulator |
| Topology | Switched Capacitor (Charge Pump) | Switched Capacitor (Charge Pump) | Switched Capacitor (Charge Pump) |
| Internal Switch(s) | Yes | - | Yes |
| Number of Outputs | 3 | 3 | 3 |
| Voltage - Supply (Min) | 2.5V | 2.5V | 2.5V |
| Voltage - Supply (Max) | 5.5V | 5.5V | 5.5V |
| Voltage - Output | 7V | - | 7V |
| Current - Output / Channel | 32mA | 32mA | 32mA |
| Frequency | 1MHz ~ 1.3MHz | 800kHz ~ 1.6MHz | 1MHz ~ 1.3MHz |
| Dimming | Multi-Step | - | Multi-Step |
| Applications | Backlight | Backlight | Backlight |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 12-WFDFN Exposed Pad | 12-WFDFN Exposed Pad | 16-WFQFN Exposed Pad |
| Supplier Device Package | 12-TDFN (3x3) | 12-TDFN (3x3) | 16-TQFN (3x3) |
