| Part Number | CAT3636HV3-GT2 | CAT3636HV3-T2 | CAT3637HV3-GT2 |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete |
| Type | DC DC Regulator | - | DC DC Regulator |
| Topology | Switched Capacitor (Charge Pump) | Switched Capacitor (Charge Pump) | Switched Capacitor (Charge Pump) |
| Internal Switch(s) | Yes | - | Yes |
| Number of Outputs | 6 | 6 | 6 |
| Voltage - Supply (Min) | 2.5V | 2.5V | 2.5V |
| Voltage - Supply (Max) | 5.5V | 5.5V | 5.5V |
| Voltage - Output | 7V | - | 7V |
| Current - Output / Channel | 32mA | 32mA | 30mA |
| Frequency | 800kHz ~ 1.1MHz | 600kHz ~ 1.4MHz | 800kHz ~ 1.1MHz |
| Dimming | - | - | Multi-Step |
| Applications | Backlight | Backlight | Backlight |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

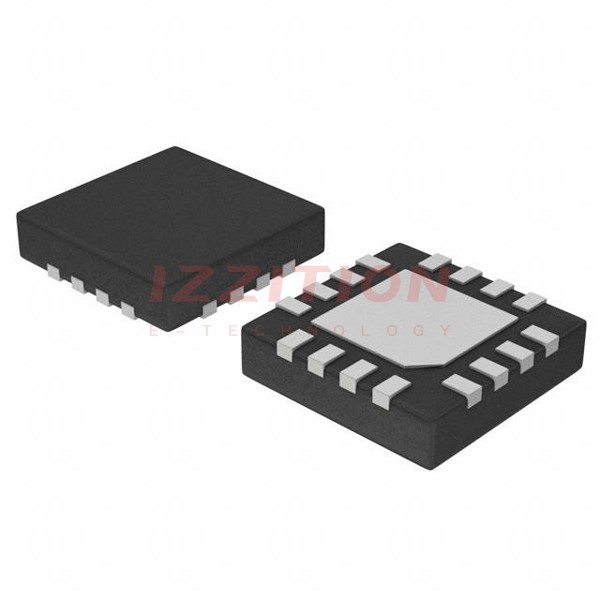

| Package / Case | 16-WFQFN Exposed Pad | 16-WFQFN Exposed Pad | 16-WFQFN Exposed Pad |
| Supplier Device Package | 16-TQFN (3x3) | 16-TQFN (3x3) | 16-TQFN (3x3) |
