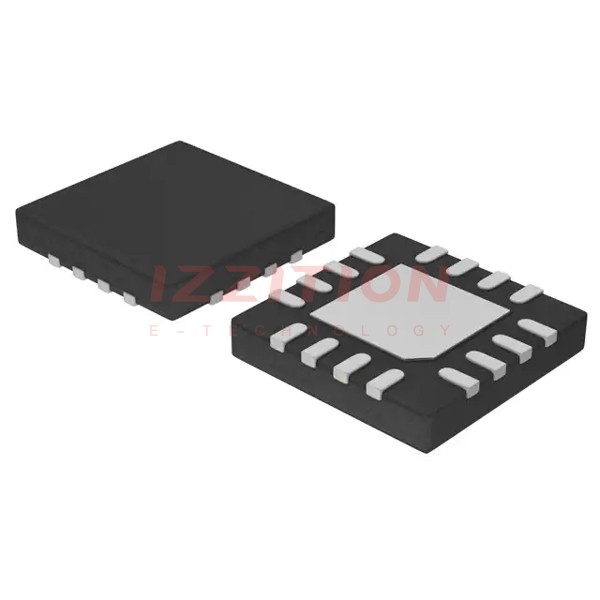

| Part Number | CAT3626HV4-T2 | CAT3606HV4-T2 | CAT3626HV4-GT2 |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Active |
| Type | - | - | DC DC Regulator |
| Topology | Switched Capacitor (Charge Pump) | Switched Capacitor (Charge Pump) | Switched Capacitor (Charge Pump) |
| Internal Switch(s) | - | - | Yes |
| Number of Outputs | 6 | 6 | 6 |
| Voltage - Supply (Min) | 3V | 3V | 3V |
| Voltage - Supply (Max) | 5.5V | 5.5V | 5.5V |
| Voltage - Output | 7V | - | 7V |
| Current - Output / Channel | 32mA | 30mA | 32mA |
| Frequency | 800kHz ~ 1.3MHz | 800kHz ~ 1.3MHz | 1MHz |
| Dimming | - | - | I²C |
| Applications | Backlight | Backlight | Backlight |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 16-WQFN Exposed Pad | 16-WQFN Exposed Pad | 16-WQFN Exposed Pad |
| Supplier Device Package | 16-TQFN (4x4) | 16-TQFN (4x4) | 16-TQFN (4x4) |
