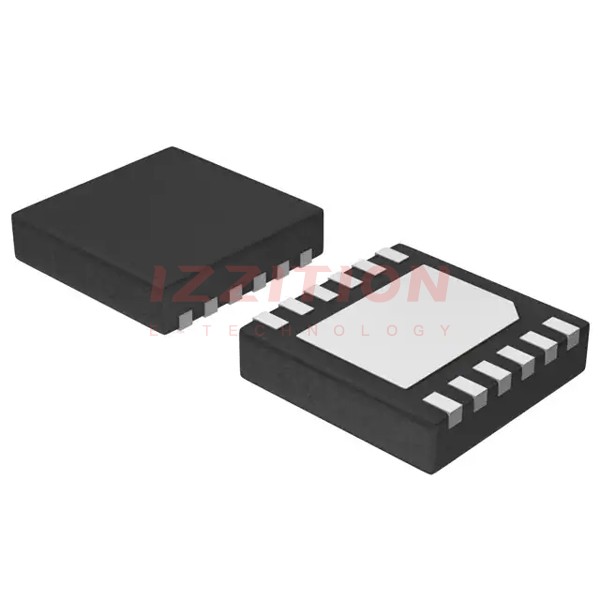

| Part Number | CAT3612HV2-T2 | CAT3614HV2-T2 | CAT3612HV2-GT2 |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete |
| Type | DC DC Regulator | - | DC DC Regulator |
| Topology | Switched Capacitor (Charge Pump) | Switched Capacitor (Charge Pump) | Switched Capacitor (Charge Pump) |
| Internal Switch(s) | Yes | - | Yes |
| Number of Outputs | 2 | 4 | 2 |
| Voltage - Supply (Min) | 3V | 3V | 3V |
| Voltage - Supply (Max) | 5.5V | 5.5V | 5.5V |
| Voltage - Output | 7V | - | 7V |
| Current - Output / Channel | 150mA (Flash) | 31mA | 150mA (Flash) |
| Frequency | 1MHz | 800kHz ~ 1.3MHz | 1MHz |
| Dimming | Multi-Step | - | Multi-Step |
| Applications | Camera Flash | Backlight | Camera Flash |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 12-WFDFN Exposed Pad | 12-WFDFN Exposed Pad | 12-WFDFN Exposed Pad |
| Supplier Device Package | 12-TDFN (3x3) | 12-TDFN (3x3) | 12-TDFN (3x3) |
