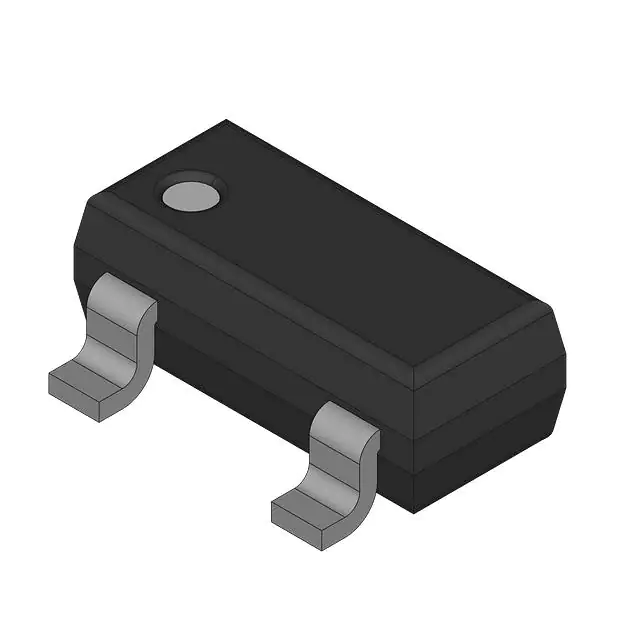

| Part Number | BZX84C12 | BZX84C13 | BZX84C15 | BZX84C12W | BZX84C10 | BZX84C11 |
|---|---|---|---|---|---|---|
| Manufacturer | onsemi | Fairchild Semiconductor | Diotec Semiconductor | Rectron USA | Diotec Semiconductor | Fairchild Semiconductor |
| Product Status | Active | Active | Active | Active | Active | Active |
| Voltage - Zener (Nom) (Vz) | 12 V | 13 V | 15 V | 12 V | 10 V | 11 V |
| Tolerance | - | ±5% | ±5% | ±10% | ±5% | - |
| Power - Max | - | 300 mW | 0.3 mW | 200 mW | 0.3 mW | - |
| Impedance (Max) (Zzt) | 25 Ohms | 30 Ohms | 30 Ohms | 25 Ohms | 20 Ohms | 20 Ohms |
| Current - Reverse Leakage @ Vr | 100 nA @ 8 V | 100 nA @ 8 V | 50 nA @ 10.5 V | 100 nA @ 8 V | 200 nA @ 7 V | 100 nA @ 8 V |
| Voltage - Forward (Vf) (Max) @ If | - | 900 mV @ 10 mA | - | 900 mV @ 10 mA | - | - |
| Operating Temperature | - | - | -50°C ~ 150°C (TJ) | - | -50°C ~ 150°C (TJ) | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 | TO-236-3, SC-59, SOT-23-3 | TO-236-3, SC-59, SOT-23-3 | SC-70, SOT-323 | TO-236-3, SC-59, SOT-23-3 | - |
| Supplier Device Package | - | SOT-23 | SOT-23-3 (TO-236) | SOT-323 | SOT-23-3 (TO-236) | - |
