onsemi-BZX79C10-T50A - Diodes - Zener - Single Product Specifications and Latest Quotes

Part Number	BZX79C10-T50A	BZX79C12-T50A	BZX79C18-T50A	BZX79C20-T50A	BZX79C15-T50A	BZX79C16-T50A	BZX79C11-T50A	BZX79C13-T50A
Manufacturer	onsemi	onsemi	onsemi	Fairchild Semiconductor	onsemi	onsemi	onsemi	onsemi
Product Status	Active	Active	Active	Active	Active	Active	Active	Active
Voltage - Zener (Nom) (Vz)	10 V	12 V	18 V	20 V	15 V	16 V	11 V	13 V
Tolerance	±5%	±5%	±5%	±5%	±5%	±5%	±5%	±5%
Power - Max	500 mW	500 mW	500 mW	500 mW	500 mW	500 mW	500 mW	500 mW
Impedance (Max) (Zzt)	20 Ohms	25 Ohms	45 Ohms	55 Ohms	30 Ohms	40 Ohms	20 Ohms	30 Ohms
Current - Reverse Leakage @ Vr	200 nA @ 7 V	100 nA @ 8 V	50 nA @ 12.6 V	50 nA @ 14 V	50 nA @ 10.5 V	50 nA @ 11.2 V	100 nA @ 8 V	100 nA @ 8 V
Voltage - Forward (Vf) (Max) @ If	1.5 V @ 100 mA	1.5 V @ 100 mA	1.5 V @ 100 mA	1.5 V @ 100 mA	1.5 V @ 100 mA	1.5 V @ 100 mA	1.5 V @ 100 mA	1.5 V @ 100 mA
Operating Temperature	-65°C ~ 200°C	-65°C ~ 200°C	-65°C ~ 200°C	-65°C ~ 200°C	-65°C ~ 200°C	-65°C ~ 200°C	-65°C ~ 200°C	-65°C ~ 200°C
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Package / Case	DO-204AH, DO-35, Axial	DO-204AH, DO-35, Axial	DO-204AH, DO-35, Axial	DO-204AH, DO-35, Axial	DO-204AH, DO-35, Axial	DO-204AH, DO-35, Axial	DO-204AH, DO-35, Axial	DO-204AH, DO-35, Axial
Supplier Device Package	DO-35	DO-35	DO-35	DO-35	DO-35	DO-35	DO-35	DO-35

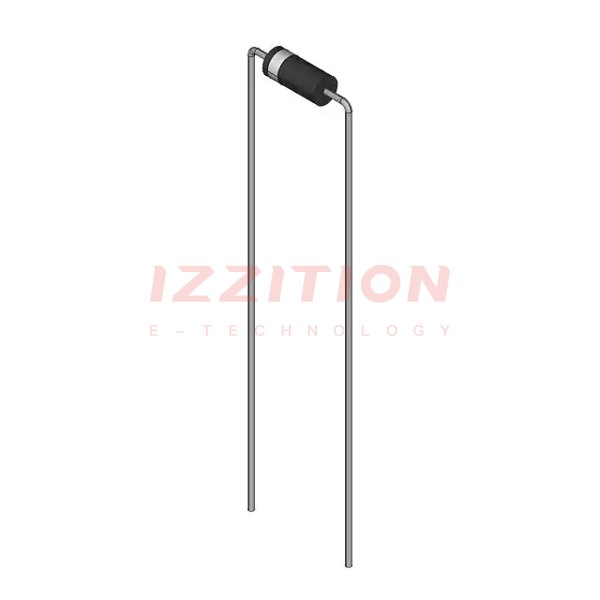

onsemi BZX79C10-T50A
