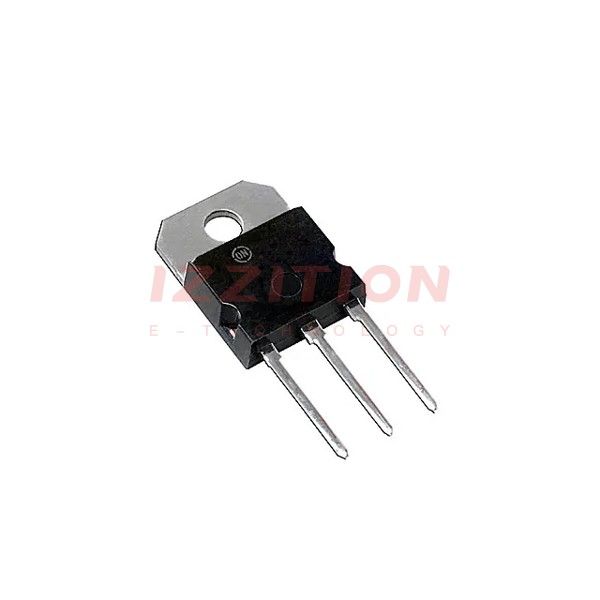

| Part Number | BU323Z | BU323ZG | BUB323Z |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete |
| Transistor Type | NPN - Darlington | NPN - Darlington | NPN - Darlington |
| Current - Collector (Ic) (Max) | 10 A | 10 A | 10 A |
| Voltage - Collector Emitter Breakdown (Max) | 350 V | 350 V | 350 V |
| Vce Saturation (Max) @ Ib, Ic | 1.7V @ 250mA, 10A | 1.7V @ 250mA, 10A | 1.7V @ 250mA, 10A |
| Current - Collector Cutoff (Max) | 100µA | 100µA | 100µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 500 @ 5A, 4.6V | 500 @ 5A, 4.6V | 500 @ 5A, 4.6V |
| Power - Max | 150 W | 150 W | 150 W |
| Frequency - Transition | 2MHz | 2MHz | 2MHz |
| Operating Temperature | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Surface Mount |
| Package / Case | TO-218-3 | TO-247-3 | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Supplier Device Package | SOT-93 | TO-247-3 | D²PAK |
