| Part Number | BFL4026-1E | BFL4036-1E |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 900 V | 500 V |
| Current - Continuous Drain (Id) @ 25°C | 3.5A (Tc) | 9.6A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 3.6Ohm @ 2.5A, 10V | 520mOhm @ 7A, 10V |
| Vgs(th) (Max) @ Id | - | - |
| Gate Charge (Qg) (Max) @ Vgs | 33 nC @ 10 V | 38.4 nC @ 10 V |
| Vgs (Max) | ±30V | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 650 pF @ 30 V | 1000 pF @ 30 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 2W (Ta), 35W (Tc) | 2W (Ta), 37W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole |

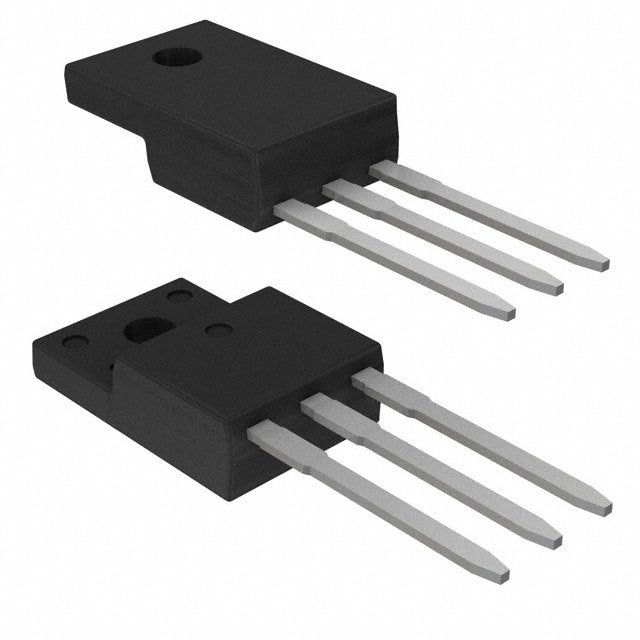

| Supplier Device Package | TO-220F-3FS | TO-220F-3FS |
| Package / Case | TO-220-3 Full Pack | TO-220-3 Full Pack |
