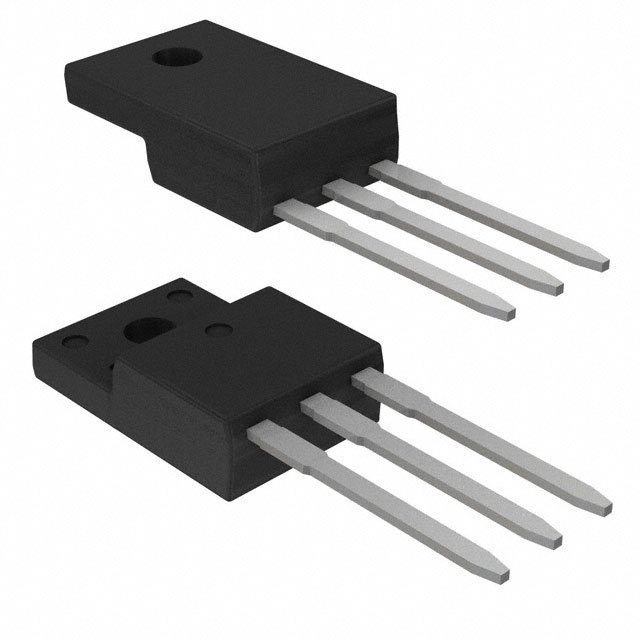

| Part Number | BFL4004-1E | BFL4007-1E | BFL4001-1E |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 800 V | 600 V | 900 V |
| Current - Continuous Drain (Id) @ 25°C | 4.3A (Tc) | 8.7A (Tc) | 4.1A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 2.5Ohm @ 3.25A, 10V | 680mOhm @ 7A, 10V | 2.7Ohm @ 3.25A, 10V |
| Vgs(th) (Max) @ Id | - | - | - |
| Gate Charge (Qg) (Max) @ Vgs | 36 nC @ 10 V | 46 nC @ 10 V | 44 nC @ 10 V |
| Vgs (Max) | ±30V | ±30V | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 710 pF @ 30 V | 1200 pF @ 30 V | 850 pF @ 30 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 2W (Ta), 36W (Tc) | 2W (Ta), 40W (Tc) | 2W (Ta), 37W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | TO-220F-3FS | TO-220F-3FS | TO-220-3 Fullpack/TO-220F-3SG |
| Package / Case | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack |
