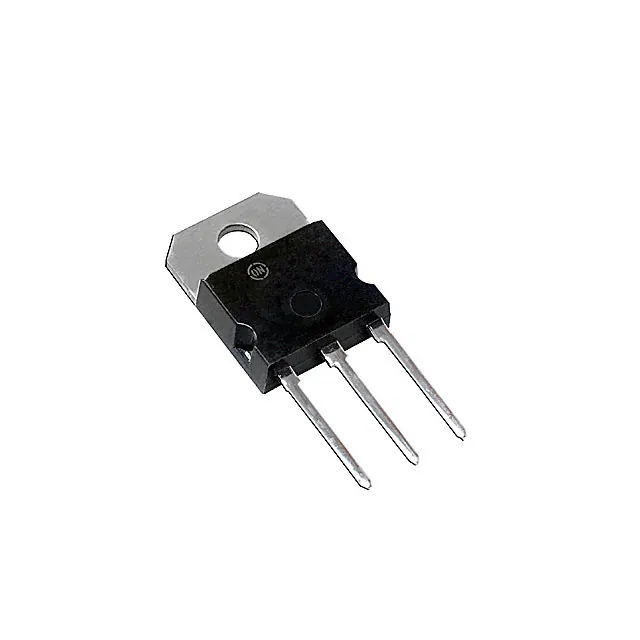

| Part Number | BDV65B | BDV65BG | BDV64B | BDV65 |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | NTE Electronics, Inc |
| Product Status | Obsolete | Obsolete | Obsolete | Active |
| Transistor Type | NPN - Darlington | NPN - Darlington | PNP - Darlington | NPN |
| Current - Collector (Ic) (Max) | 10 A | 10 A | 10 A | 12 A |
| Voltage - Collector Emitter Breakdown (Max) | 100 V | 100 V | 100 V | 60 V |
| Vce Saturation (Max) @ Ib, Ic | 2V @ 20mA, 5A | 2V @ 20mA, 5A | 2V @ 20mA, 5A | - |
| Current - Collector Cutoff (Max) | 1mA | 1mA | 1mA | - |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 1000 @ 5A, 4V | 1000 @ 5A, 4V | 1000 @ 5A, 4V | 1000 @ 5A, 4V |
| Power - Max | 125 W | 125 W | 125 W | 125 W |
| Frequency - Transition | - | - | - | 60MHz |
| Operating Temperature | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-218-3 | TO-247-3 | TO-218-3 | TO-218-3 |
| Supplier Device Package | SOT-93 | TO-247-3 | SOT-93 | TO-218 |
