onsemi-BD681STU-ON - Transistors - Bipolar (BJT) - Single Product Specifications and Latest Quotes

Transistor Type:	NPN - Darlington
Current - Collector (Ic) (Max):	4 A
Voltage - Collector Emitter Breakdown (Max):	100 V
Vce Saturation (Max) @ Ib, Ic:	2.5V @ 30mA, 1.5A
Current - Collector Cutoff (Max):	500µA
DC Current Gain (hFE) (Min) @ Ic, Vce:	750 @ 1.5A, 3V
Power - Max:	40 W
Frequency - Transition:	-
Operating Temperature:	150°C (TJ)
Mounting Type:	Through Hole

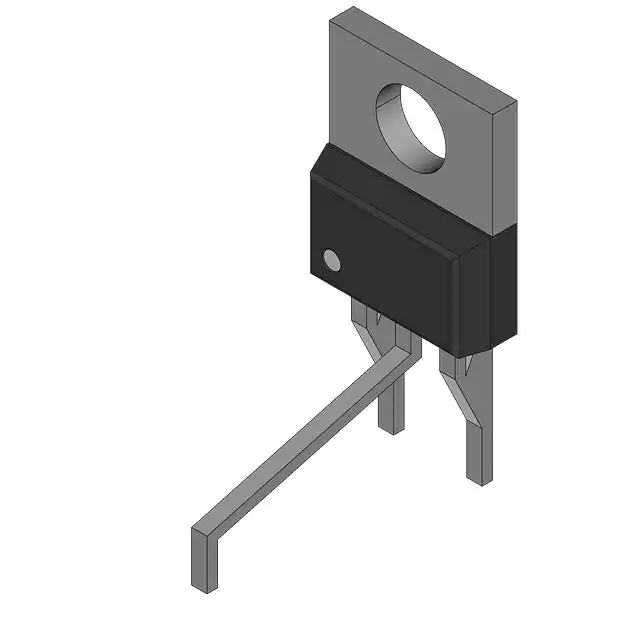

Package / Case:	TO-225AA, TO-126-3
Supplier Device Package:	TO-126-3

onsemi BD681STU-ON
