Part Number	BD236STU	BD237STU	BD238STU	BD233STU	BD234STU	BD235STU
Manufacturer	onsemi	Fairchild Semiconductor	onsemi	Fairchild Semiconductor	onsemi	onsemi
Product Status	Active	Active	Obsolete	Obsolete	Obsolete	Obsolete
Transistor Type	PNP	NPN	PNP	NPN	PNP	NPN
Current - Collector (Ic) (Max)	2 A	2 A	2 A	2 A	2 A	2 A
Voltage - Collector Emitter Breakdown (Max)	60 V	80 V	80 V	45 V	45 V	60 V
Vce Saturation (Max) @ Ib, Ic	600mV @ 100mA, 1A	600mV @ 100mA, 1A	600mV @ 100mA, 1A	600mV @ 100mA, 1A	600mV @ 100mA, 1A	600mV @ 100mA, 1A
Current - Collector Cutoff (Max)	100nA (ICBO)	100µA (ICBO)	100µA (ICBO)	100µA (ICBO)	100µA (ICBO)	100µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	25 @ 1A, 2V	40 @ 150mA, 2V	25 @ 1A, 2V	25 @ 1A, 2V	25 @ 1A, 2V	25 @ 1A, 2V
Power - Max	25 W	25 W	25 W	25 W	25 W	25 W
Frequency - Transition	3MHz	3MHz	3MHz	3MHz	3MHz	3MHz
Operating Temperature	150°C (TJ)	150°C (TJ)	150°C (TJ)	150°C (TJ)	150°C (TJ)	150°C (TJ)
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Package / Case	TO-225AA, TO-126-3	TO-225AA, TO-126-3	TO-225AA, TO-126-3	TO-225AA, TO-126-3	TO-225AA, TO-126-3	TO-225AA, TO-126-3
Supplier Device Package	TO-126-3	TO-126-3	TO-126-3	TO-126-3	TO-126-3	TO-126-3

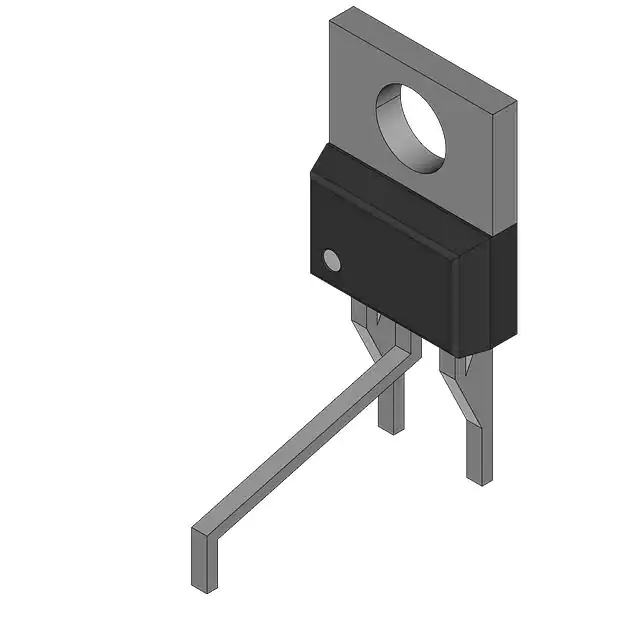

onsemi BD236STU

Transistor Type:	PNP
Current - Collector (Ic) (Max):	2 A
Voltage - Collector Emitter Breakdown (Max):	60 V
Vce Saturation (Max) @ Ib, Ic:	600mV @ 100mA, 1A
Current - Collector Cutoff (Max):	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:	25 @ 1A, 2V
Power - Max:	25 W
Frequency - Transition:	3MHz
Operating Temperature:	150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-225AA, TO-126-3
Supplier Device Package:	TO-126-3
