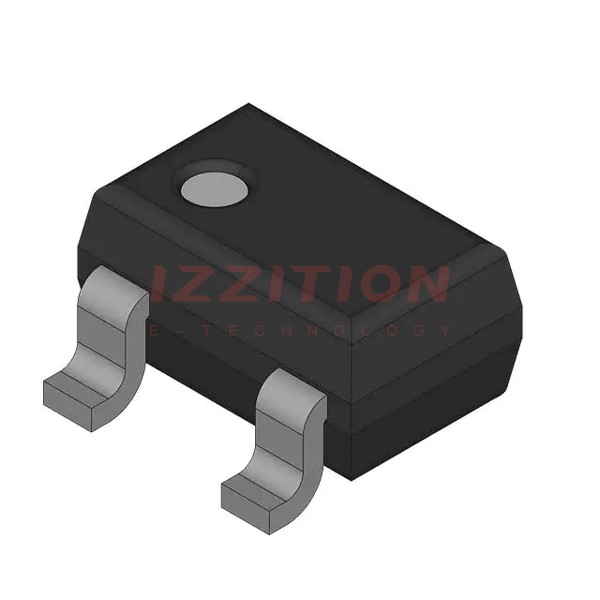

| Part Number | BAW56WT1H | BAW56WT1 | BAW56WT1G |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Active | Obsolete | Active |
| Diode Configuration | - | 1 Pair Common Anode | 1 Pair Common Anode |
| Diode Type | - | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | - | 70 V | 70 V |
| Current - Average Rectified (Io) (per Diode) | - | 200mA (DC) | 200mA (DC) |
| Voltage - Forward (Vf) (Max) @ If | - | 1.25 V @ 150 mA | 1.25 V @ 150 mA |
| Speed | - | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | - | 6 ns | 6 ns |
| Current - Reverse Leakage @ Vr | - | 2.5 µA @ 70 V | 2.5 µA @ 70 V |
| Operating Temperature - Junction | - | -55°C ~ 150°C | -55°C ~ 150°C |
| Mounting Type | - | Surface Mount | Surface Mount |
| Package / Case | - | SC-70, SOT-323 | SC-70, SOT-323 |
| Supplier Device Package | - | SC-70-3 (SOT323) | SC-70-3 (SOT323) |
