Please send RFQ , we will respond immediately.

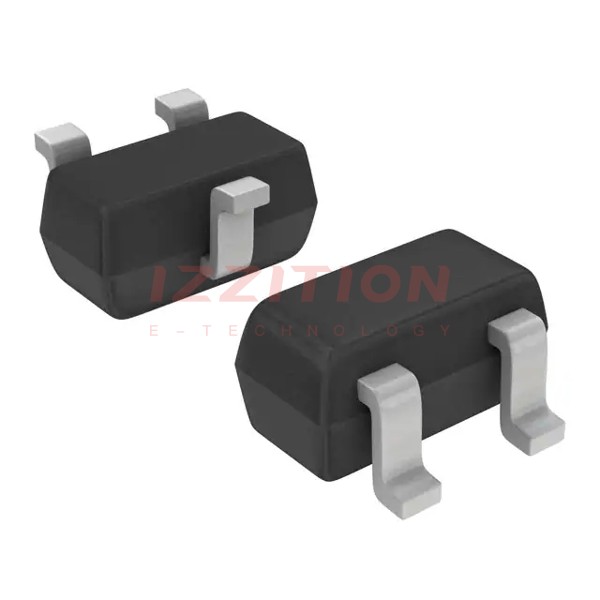

| Part Number | BAW56TT1G | BAW56WT1G | BAW56LT1G | BAW56TT1 |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active | Obsolete |
| Diode Configuration | 1 Pair Common Anode | 1 Pair Common Anode | 1 Pair Common Anode | 1 Pair Common Anode |
| Diode Type | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 70 V | 70 V | 70 V | 70 V |
| Current - Average Rectified (Io) (per Diode) | 200mA (DC) | 200mA (DC) | 200mA (DC) | 200mA (DC) |
| Voltage - Forward (Vf) (Max) @ If | 1.25 V @ 150 mA | 1.25 V @ 150 mA | 1.25 V @ 150 mA | 1.25 V @ 150 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 6 ns | 6 ns | 6 ns | 6 ns |
| Current - Reverse Leakage @ Vr | 2.5 µA @ 70 V | 2.5 µA @ 70 V | 2.5 µA @ 70 V | 2.5 µA @ 70 V |
| Operating Temperature - Junction | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SC-75, SOT-416 | SC-70, SOT-323 | TO-236-3, SC-59, SOT-23-3 | SC-75, SOT-416 |
| Supplier Device Package | SC-75, SOT-416 | SC-70-3 (SOT323) | SOT-23-3 (TO-236) | SC-75, SOT-416 |
