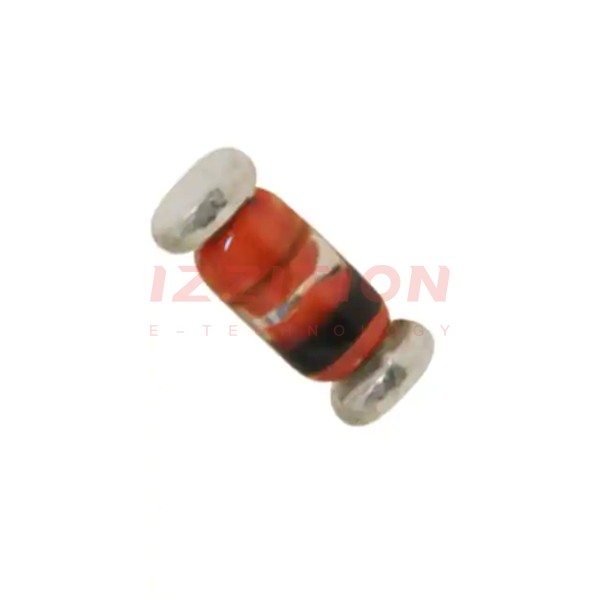

| Part Number | BAV102 | BAV103 | BAV100 | BAV101 |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | Diotec Semiconductor | Diotec Semiconductor |
| Product Status | Active | Active | Active | Active |
| Diode Type | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 150 V | 200 V | 50 V | 100 V |
| Current - Average Rectified (Io) | 200mA | 200mA | 200mA | 200mA |
| Voltage - Forward (Vf) (Max) @ If | 1.25 V @ 200 mA | 1.25 V @ 200 mA | 1.25 V @ 200 mA | 1.25 V @ 200 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 50 ns | 50 ns | 50 ns | 50 ns |
| Current - Reverse Leakage @ Vr | 100 nA @ 150 V | 100 nA @ 200 V | 5 µA @ 50 V | 5 µA @ 100 V |
| Capacitance @ Vr, F | 5pF @ 0V, 1MHz | 5pF @ 0V, 1MHz | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-213AC, MINI-MELF, SOD-80 | DO-213AC, MINI-MELF, SOD-80 | DO-213AA | DO-213AA |
| Supplier Device Package | SOD-80 | SOD-80 | DO-213AA, MINI-MELF | DO-213AA, MINI-MELF |
| Operating Temperature - Junction | -65°C ~ 200°C | -65°C ~ 200°C | -50°C ~ 175°C | -50°C ~ 175°C |
