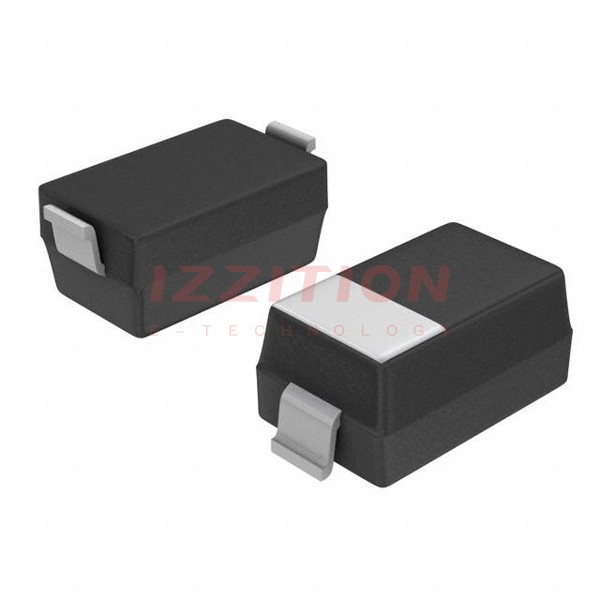

| Part Number | BAT54T1G | BAT54WT1G | BAT54HT1G | BAT54LT1G | BAT54T1 |
|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active | Active | Obsolete |
| Diode Type | Schottky | Schottky | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 30 V | 30 V | 30 V | 30 V | 30 V |
| Current - Average Rectified (Io) | 200mA (DC) | 200mA (DC) | 200mA (DC) | 200mA (DC) | 200mA (DC) |
| Voltage - Forward (Vf) (Max) @ If | 800 mV @ 100 mA | 800 mV @ 100 mA | 800 mV @ 100 mA | 800 mV @ 100 mA | 800 mV @ 100 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 5 ns | 5 ns | 5 ns | 5 ns | 5 ns |
| Current - Reverse Leakage @ Vr | 2 µA @ 25 V | 2 µA @ 25 V | 2 µA @ 25 V | 2 µA @ 25 V | 2 µA @ 25 V |
| Capacitance @ Vr, F | 10pF @ 1V, 1MHz | 10pF @ 1V, 1MHz | 10pF @ 1V, 1MHz | 10pF @ 1V, 1MHz | 10pF @ 1V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SOD-123 | SC-70, SOT-323 | SC-76, SOD-323 | TO-236-3, SC-59, SOT-23-3 | SOD-123 |
| Supplier Device Package | SOD-123 | SC-70-3 (SOT323) | SOD-323 | SOT-23-3 (TO-236) | SOD-123 |
| Operating Temperature - Junction | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 150°C | -55°C ~ 150°C | - |
