| Part Number | BAT54CXV3T1G | BAT54CXV3T1 |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Active | Obsolete |
| Diode Configuration | 1 Pair Common Cathode | 1 Pair Common Cathode |
| Diode Type | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 30 V | 30 V |
| Current - Average Rectified (Io) (per Diode) | 200mA (DC) | 200mA (DC) |
| Voltage - Forward (Vf) (Max) @ If | 800 mV @ 100 mA | 800 mV @ 100 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 5 ns | 5 ns |
| Current - Reverse Leakage @ Vr | 2 µA @ 25 V | 2 µA @ 25 V |
| Operating Temperature - Junction | -55°C ~ 125°C | -55°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount |

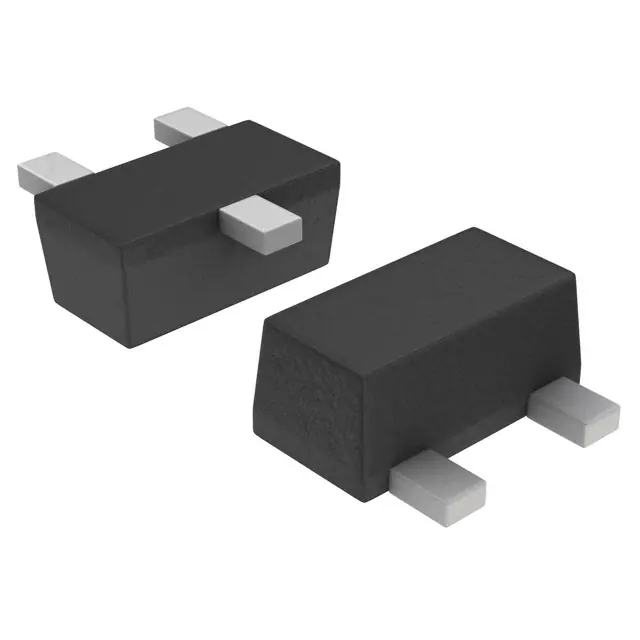

| Package / Case | SC-89, SOT-490 | SC-89, SOT-490 |
| Supplier Device Package | SC-89-3 | SC-89-3 |
