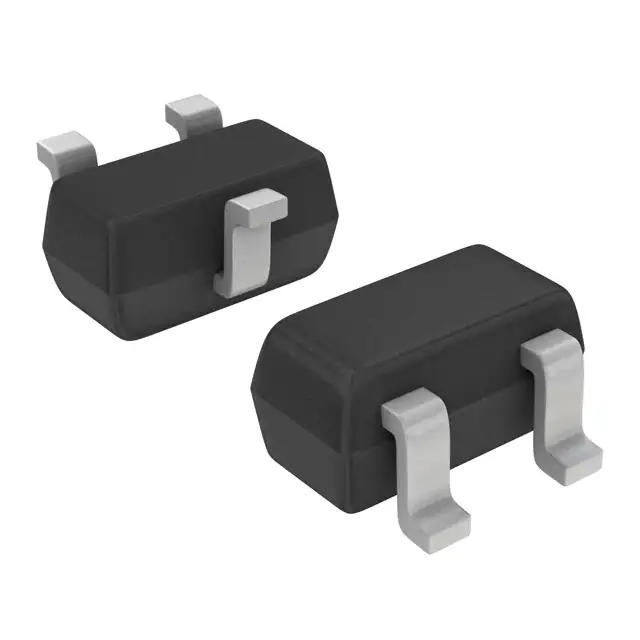

| Part Number | BAT54CTT1 | BAT54CTT1G | BAT54CWT1 | BAT54CLT1 |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Active | Obsolete | Obsolete |
| Diode Configuration | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode |
| Diode Type | Schottky | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 30 V | 30 V | 30 V | 30 V |
| Current - Average Rectified (Io) (per Diode) | 200mA (DC) | 200mA (DC) | 200mA (DC) | 200mA (DC) |
| Voltage - Forward (Vf) (Max) @ If | 800 mV @ 100 mA | 800 mV @ 100 mA | 800 mV @ 100 mA | 800 mV @ 100 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 5 ns | 5 ns | 5 ns | 5 ns |
| Current - Reverse Leakage @ Vr | 2 µA @ 25 V | 2 µA @ 25 V | 2 µA @ 25 V | 2 µA @ 25 V |
| Operating Temperature - Junction | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 150°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SC-75, SOT-416 | SC-75, SOT-416 | SC-70, SOT-323 | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SC-75, SOT-416 | SC-75, SOT-416 | SC-70-3 (SOT323) | SOT-23-3 (TO-236) |
