onsemi-BAS16P2T5G - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	100 V
Current - Average Rectified (Io):	200mA (DC)
Voltage - Forward (Vf) (Max) @ If:	1.25 V @ 150 mA
Speed:	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr):	6 ns
Current - Reverse Leakage @ Vr:	100 µA @ 100 V
Capacitance @ Vr, F:	2pF @ 0V, 1MHz
Mounting Type:	Surface Mount
Package / Case:	SOD-923
Supplier Device Package:	SOD-923
Operating Temperature - Junction:	-55°C ~ 150°C

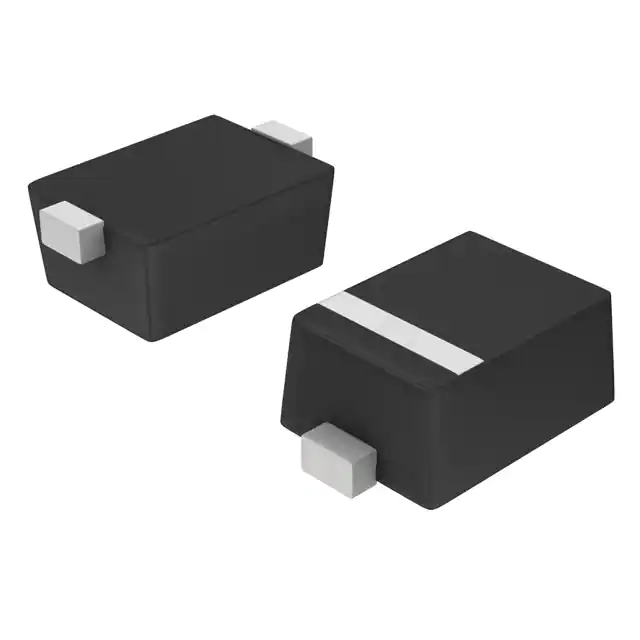

onsemi BAS16P2T5G
