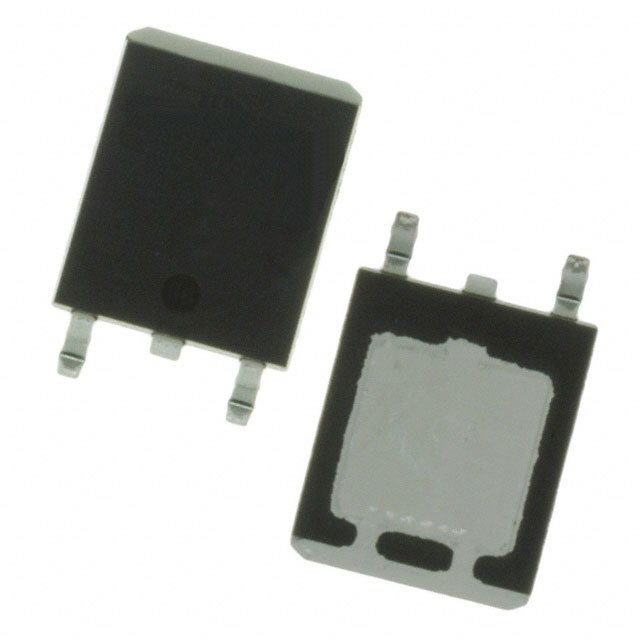

| Part Number | ATP218-TL-H | ATP208-TL-H | ATP212-TL-H | ATP213-TL-H | ATP214-TL-H | ATP216-TL-H |
|---|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Discontinued at Digi-Key | Obsolete | Obsolete | Discontinued at Digi-Key | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V | 40 V | 60 V | 60 V | 60 V | 50 V |
| Current - Continuous Drain (Id) @ 25°C | 100A (Ta) | 90A (Ta) | 35A (Ta) | 50A (Ta) | 75A (Ta) | 35A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V | 4.5V, 10V | 4V, 10V | 4V, 10V | 4V, 10V | 1.8V, 4.5V |
| Rds On (Max) @ Id, Vgs | 3.8mOhm @ 50A, 4.5V | 6mOhm @ 45A, 10V | 23mOhm @ 18A, 10V | 16mOhm @ 25A, 10V | 8.1mOhm @ 38A, 10V | 23mOhm @ 18A, 4.5V |
| Vgs(th) (Max) @ Id | - | - | - | - | - | - |
| Gate Charge (Qg) (Max) @ Vgs | 70 nC @ 4.5 V | 83 nC @ 10 V | 34.5 nC @ 10 V | 58 nC @ 10 V | 96 nC @ 10 V | 30 nC @ 4.5 V |
| Vgs (Max) | ±10V | ±20V | ±20V | ±20V | ±20V | ±10V |
| Input Capacitance (Ciss) (Max) @ Vds | 6600 pF @ 10 V | 4510 pF @ 20 V | 1820 pF @ 20 V | 3150 pF @ 20 V | 4850 pF @ 20 V | 2700 pF @ 20 V |
| FET Feature | - | - | - | - | - | - |
| Power Dissipation (Max) | 60W (Tc) | 60W (Tc) | 40W (Tc) | 50W (Tc) | 60W (Tc) | 40W (Tc) |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | ATPAK | ATPAK | ATPAK | ATPAK | ATPAK | ATPAK |
| Package / Case | ATPAK (2 leads+tab) | ATPAK (2 leads+tab) | ATPAK (2 leads+tab) | ATPAK (2 leads+tab) | ATPAK (2 leads+tab) | ATPAK (2 leads+tab) |
