| Part Number | ATP202-TL-H | ATP203-TL-H | ATP302-TL-H | ATP204-TL-H | ATP206-TL-H | ATP207-TL-H | ATP208-TL-H | ATP212-TL-H | ATP602-TL-H | ATP102-TL-H | ATP201-TL-H |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | onsemi | Sanyo | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Active | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Discontinued at Digi-Key | Obsolete | Obsolete | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | P-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | P-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V | 30 V | 60 V | 30 V | 40 V | 40 V | 40 V | 60 V | 600 V | 30 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 50A (Ta) | 75A (Ta) | 70A (Ta) | 100A (Ta) | 40A (Ta) | 65A (Ta) | 90A (Ta) | 35A (Ta) | 5A (Ta) | 40A (Ta) | 35A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V | 4V, 10V | 10V | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 12mOhm @ 25A, 10V | 8.2mOhm @ 38A, 10V | 13mOhm @ 35A, 10V | 5.6mOhm @ 50A, 10V | 16mOhm @ 20A, 10V | 9.1mOhm @ 33A, 10V | 6mOhm @ 45A, 10V | 23mOhm @ 18A, 10V | 2.7Ohm @ 2.5A, 10V | 18.5mOhm @ 20A, 10V | 17mOhm @ 18A, 10V |
| Vgs(th) (Max) @ Id | - | - | - | - | - | - | - | - | - | - | - |
| Gate Charge (Qg) (Max) @ Vgs | 27 nC @ 10 V | 44 nC @ 10 V | 115 nC @ 10 V | 70 nC @ 10 V | 27 nC @ 10 V | 54 nC @ 10 V | 83 nC @ 10 V | 34.5 nC @ 10 V | 13.6 nC @ 10 V | 34 nC @ 10 V | 17 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V | ±20V | ±20V | ±20V | ±20V | ±20V | ±30V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1650 pF @ 10 V | 2750 pF @ 10 V | 5400 pF @ 20 V | 4600 pF @ 10 V | 1630 pF @ 20 V | 2710 pF @ 20 V | 4510 pF @ 20 V | 1820 pF @ 20 V | 350 pF @ 30 V | 1490 pF @ 10 V | 985 pF @ 10 V |
| FET Feature | - | - | - | - | - | - | - | - | - | - | - |
| Power Dissipation (Max) | 40W (Tc) | 50W (Tc) | 70W (Tc) | 60W (Tc) | 40W (Tc) | 50W (Tc) | 60W (Tc) | 40W (Tc) | 70W (Tc) | 40W (Tc) | 30W (Tc) |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

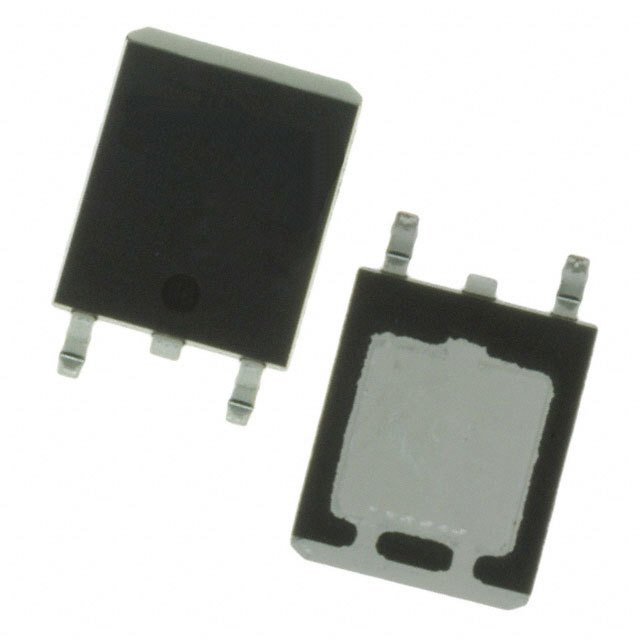

| Supplier Device Package | ATPAK | ATPAK | ATPAK | ATPAK | ATPAK | ATPAK | ATPAK | ATPAK | ATPAK | ATPAK | ATPAK |
| Package / Case | ATPAK (2 leads+tab) | ATPAK (2 leads+tab) | ATPAK (2 leads+tab) | ATPAK (2 leads+tab) | ATPAK (2 leads+tab) | ATPAK (2 leads+tab) | ATPAK (2 leads+tab) | ATPAK (2 leads+tab) | ATPAK (2 leads+tab) | ATPAK (2 leads+tab) | ATPAK (2 leads+tab) |
