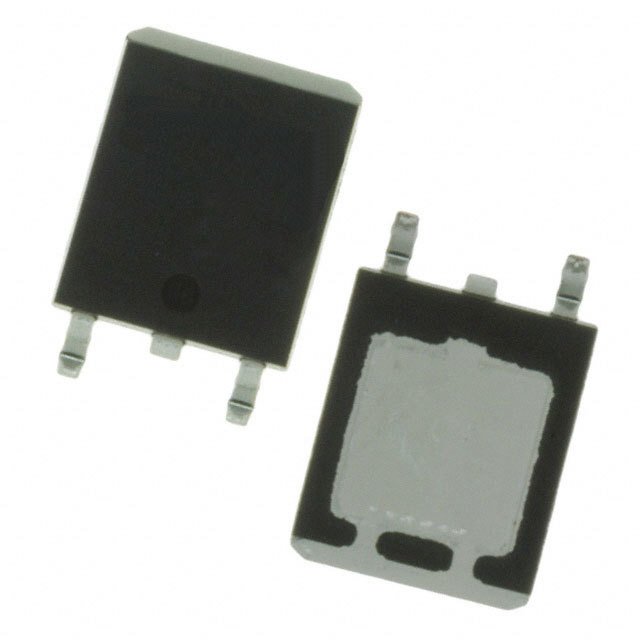

| Part Number | ATP108-TL-H | ATP208-TL-H | ATP101-TL-H | ATP102-TL-H | ATP103-TL-H | ATP104-TL-H | ATP106-TL-H | ATP107-TL-H |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Discontinued at Digi-Key | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| FET Type | P-Channel | N-Channel | P-Channel | P-Channel | P-Channel | P-Channel | P-Channel | P-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V | 40 V | 30 V | 30 V | 30 V | 30 V | 40 V | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 70A (Ta) | 90A (Ta) | 25A (Ta) | 40A (Ta) | 55A (Ta) | 75A (Ta) | 30A (Ta) | 50A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 10.4mOhm @ 35A, 10V | 6mOhm @ 45A, 10V | 30mOhm @ 13A, 10V | 18.5mOhm @ 20A, 10V | 13mOhm @ 28A, 10V | 8.4mOhm @ 38A, 10V | 25mOhm @ 15A, 10V | 17mOhm @ 25A, 10V |
| Vgs(th) (Max) @ Id | - | - | - | - | - | - | - | - |
| Gate Charge (Qg) (Max) @ Vgs | 79.5 nC @ 10 V | 83 nC @ 10 V | 18.5 nC @ 10 V | 34 nC @ 10 V | 47 nC @ 10 V | 76 nC @ 10 V | 29 nC @ 10 V | 47 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V | ±20V | ±20V | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 3850 pF @ 20 V | 4510 pF @ 20 V | 875 pF @ 10 V | 1490 pF @ 10 V | 2430 pF @ 10 V | 3950 pF @ 10 V | 1380 pF @ 20 V | 2400 pF @ 20 V |
| FET Feature | - | - | - | - | - | - | - | - |
| Power Dissipation (Max) | 60W (Tc) | 60W (Tc) | 30W (Tc) | 40W (Tc) | 50W (Tc) | 60W (Tc) | 40W (Tc) | 50W (Tc) |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | ATPAK | ATPAK | ATPAK | ATPAK | ATPAK | ATPAK | ATPAK | ATPAK |
| Package / Case | ATPAK (2 leads+tab) | ATPAK (2 leads+tab) | ATPAK (2 leads+tab) | ATPAK (2 leads+tab) | ATPAK (2 leads+tab) | ATPAK (2 leads+tab) | ATPAK (2 leads+tab) | ATPAK (2 leads+tab) |
