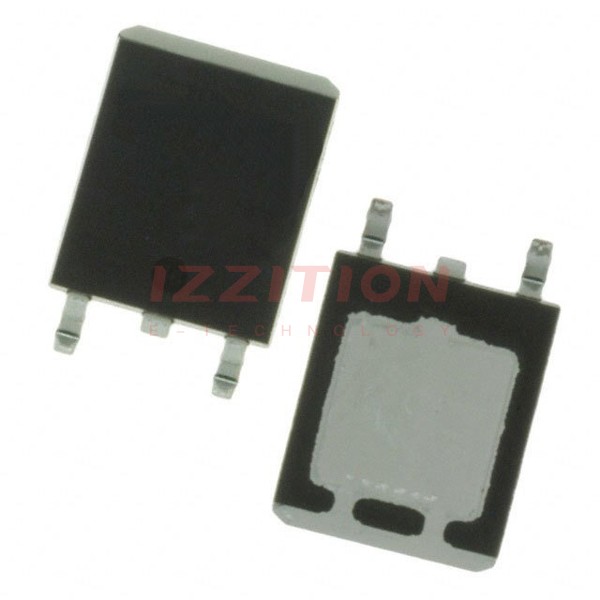

| Part Number | ATP104-TL-HX | ATP101-TL-HX | ATP104-TL-H |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete |
| FET Type | P-Channel | P-Channel | P-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V | 30 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 75A (Ta) | 25A (Ta) | 75A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 8.4mOhm @ 38A, 10V | 30mOhm @ 13A, 10V | 8.4mOhm @ 38A, 10V |
| Vgs(th) (Max) @ Id | - | - | - |
| Gate Charge (Qg) (Max) @ Vgs | 76 nC @ 10 V | 18.5 nC @ 10 V | 76 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 3950 pF @ 10 V | 875 pF @ 10 V | 3950 pF @ 10 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 60W (Tc) | 30W (Tc) | 60W (Tc) |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | ATPAK | ATPAK | ATPAK |
| Package / Case | ATPAK (2 leads+tab) | ATPAK (2 leads+tab) | ATPAK (2 leads+tab) |
