| Part Number | AFGB30T65SQDN | AFGB40T65SQDN |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Active | Active |
| IGBT Type | - | - |
| Voltage - Collector Emitter Breakdown (Max) | 650 V | 650 V |
| Current - Collector (Ic) (Max) | 60 A | 80 A |
| Current - Collector Pulsed (Icm) | 120 A | 160 A |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 30A | 2.1V @ 15V, 40A |
| Power - Max | 220 W | 238 W |
| Switching Energy | - | 858µJ (on), 229µJ (off) |
| Input Type | Standard | Standard |
| Gate Charge | 56 nC | 76 nC |
| Td (on/off) @ 25°C | 14.5ns/63.2ns | 17.6ns/75.2ns |
| Test Condition | 400V, 30A, 6Ohm, 15V | 400V, 40A, 6Ohm, 15V |
| Reverse Recovery Time (trr) | 245 ns | 131 ns |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |

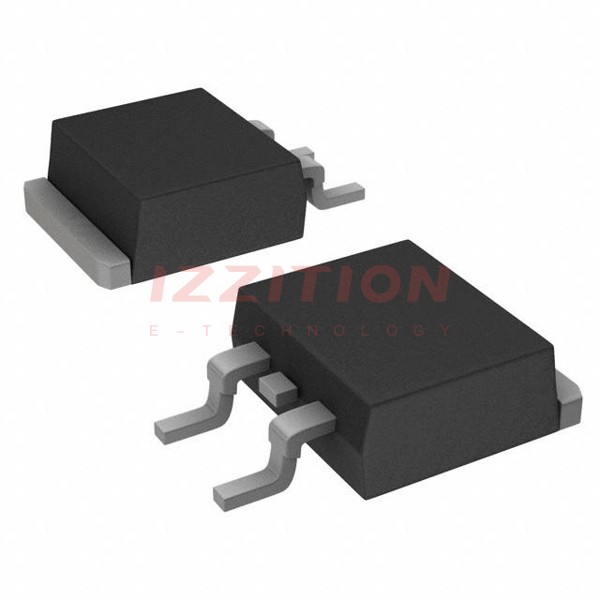

| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Supplier Device Package | D²PAK-3 (TO-263-3) | D²PAK-3 (TO-263-3) |
