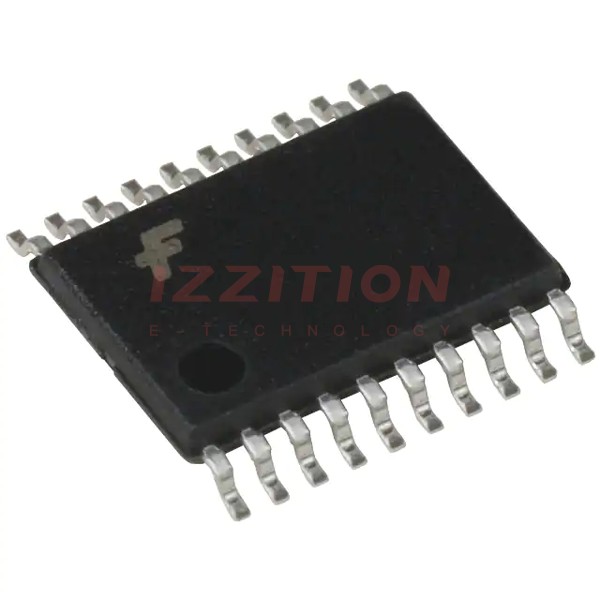

| Part Number | 74LVTH2240MTCX | 74LVTH240MTCX | 74LVTH2245MTCX | 74LVTH2244MTCX | 74LVTH2240MTC |
|---|---|---|---|---|---|
| Manufacturer | onsemi | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor |
| Product Status | Obsolete | Active | Active | Active | Obsolete |
| Logic Type | Buffer, Inverting | Buffer, Inverting | Transceiver, Non-Inverting | Buffer, Non-Inverting | Buffer, Inverting |
| Number of Elements | 2 | 2 | 1 | 2 | 2 |
| Number of Bits per Element | 4 | 4 | 8 | 4 | 4 |
| Input Type | - | - | - | - | - |
| Output Type | 3-State | 3-State | 3-State | 3-State | 3-State |
| Current - Output High, Low | 12mA, 12mA | 32mA, 64mA | 32mA, 64mA; 12mA, 12mA | 12mA, 12mA | 12mA, 12mA |
| Voltage - Supply | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) | 20-TSSOP (0.173", 4.40mm Width) | 20-TSSOP (0.173", 4.40mm Width) | 20-TSSOP (0.173", 4.40mm Width) | 20-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 20-TSSOP | 20-TSSOP | 20-TSSOP | 20-TSSOP | 20-TSSOP |
