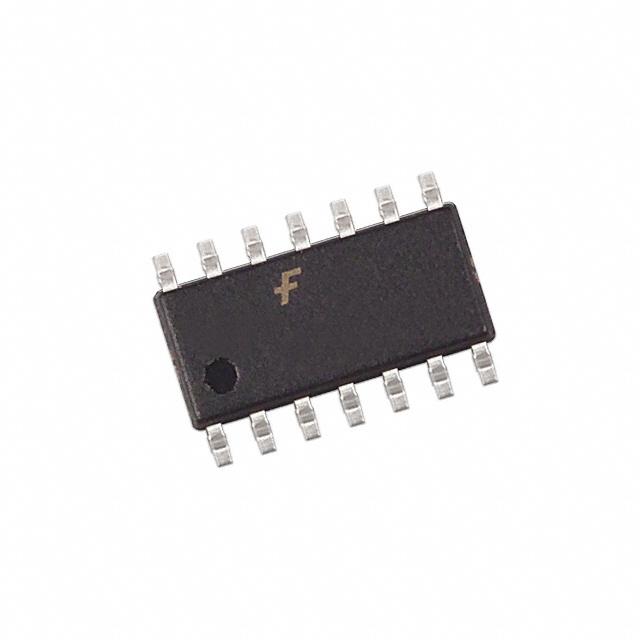

| Part Number | 74LVQ86SJ | 74LVQ86SJX | 74LVQ86SC |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | Fairchild Semiconductor |
| Product Status | Obsolete | Obsolete | Obsolete |
| Logic Type | XOR (Exclusive OR) | XOR (Exclusive OR) | XOR (Exclusive OR) |
| Number of Circuits | 4 | 4 | 4 |
| Number of Inputs | 2 | 2 | 2 |
| Features | - | - | - |
| Voltage - Supply | 2V ~ 3.6V | 2V ~ 3.6V | 2V ~ 3.6V |
| Current - Quiescent (Max) | 2 µA | 2 µA | 2 µA |
| Current - Output High, Low | 12mA, 12mA | 12mA, 12mA | 12mA, 12mA |
| Logic Level - Low | 0.8V | 0.8V | 0.8V |
| Logic Level - High | 2V | 2V | 2V |
| Max Propagation Delay @ V, Max CL | 11.5ns @ 3.3V, 50pF | 11.5ns @ 3.3V, 50pF | 11.5ns @ 3.3V, 50pF |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 14-SOP | 14-SOP | 14-SOIC |
| Package / Case | 14-SOIC (0.209", 5.30mm Width) | 14-SOIC (0.209", 5.30mm Width) | 14-SOIC (0.154", 3.90mm Width) |
