Please send RFQ , we will respond immediately.

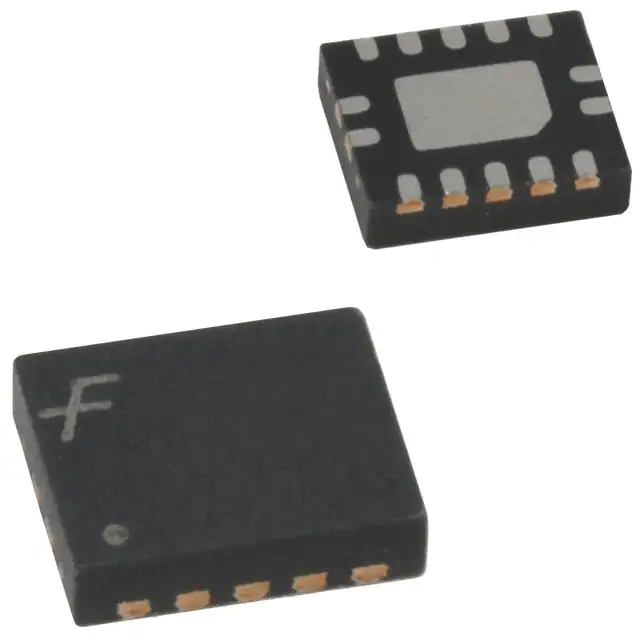

| Part Number | 74LCX08BQX | 74LCX00BQX | 74LCX04BQX |
|---|---|---|---|
| Manufacturer | onsemi | Fairchild Semiconductor | onsemi |
| Product Status | Active | Active | Active |
| Logic Type | AND Gate | NAND Gate | Inverter |
| Number of Circuits | 4 | 4 | 6 |
| Number of Inputs | 2 | 2 | 1 |
| Features | - | - | - |
| Voltage - Supply | 2V ~ 3.6V | 2V ~ 3.6V | 2V ~ 3.6V |
| Current - Quiescent (Max) | 10 µA | 10 µA | 10 µA |
| Current - Output High, Low | 24mA, 24mA | 24mA, 24mA | 24mA, 24mA |
| Logic Level - Low | 0.7V ~ 0.8V | 0.7V ~ 0.8V | 0.7V ~ 0.8V |
| Logic Level - High | 1.7V ~ 2V | 1.7V ~ 2V | 1.7V ~ 2V |
| Max Propagation Delay @ V, Max CL | 5.5ns @ 3.3V, 50pF | 5.2ns @ 3.3V, 50pF | 5.2ns @ 3.3V, 50pF |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 14-DQFN (3x2.5) | 14-DQFN (3x2.5) | 14-DQFN (3x2.5) |
| Package / Case | 14-VFQFN Exposed Pad | 14-VFQFN Exposed Pad | 14-VFQFN Exposed Pad |
