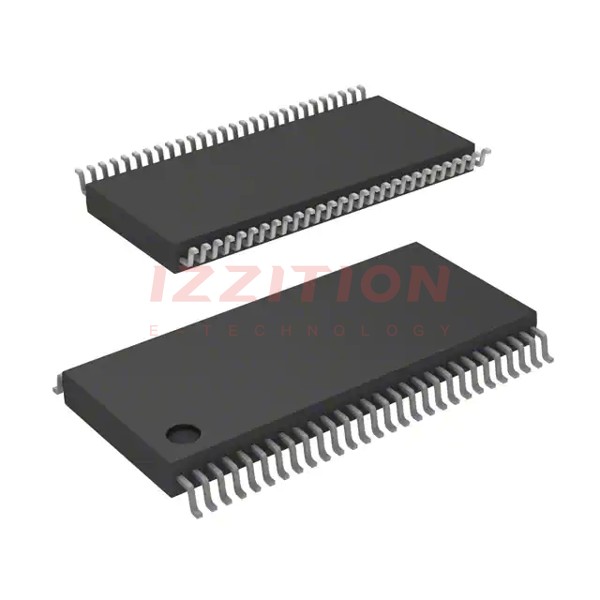

| Part Number | 74ACTQ18823MTDX | 74ACT18823MTDX | 74ACTQ18823MTD |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | Fairchild Semiconductor |
| Product Status | Obsolete | Obsolete | Obsolete |
| Function | Reset | Master Reset | Reset |
| Type | D-Type | D-Type | D-Type |
| Output Type | Tri-State, Non-Inverted | Tri-State, Non-Inverted | Tri-State, Non-Inverted |
| Number of Elements | 2 | 2 | 2 |
| Number of Bits per Element | 9 | 9 | 9 |
| Clock Frequency | 100 MHz | 100 MHz | 100 MHz |
| Max Propagation Delay @ V, Max CL | 9ns @ 5V, 50pF | 9ns @ 5V, 50pF | 9ns @ 5V, 50pF |
| Trigger Type | Positive Edge | Positive Edge | Positive Edge |
| Current - Output High, Low | 24mA, 24mA | 24mA, 24mA | 24mA, 24mA |
| Voltage - Supply | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V |
| Current - Quiescent (Iq) | 80 µA | 80 µA | 80 µA |
| Input Capacitance | 4.5 pF | 4.5 pF | 4.5 pF |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 56-TSSOP | 56-TSSOP | 56-TSSOP |
| Package / Case | 56-TFSOP (0.240", 6.10mm Width) | 56-TFSOP (0.240", 6.10mm Width) | 56-TFSOP (0.240", 6.10mm Width) |
