Please send RFQ , we will respond immediately.

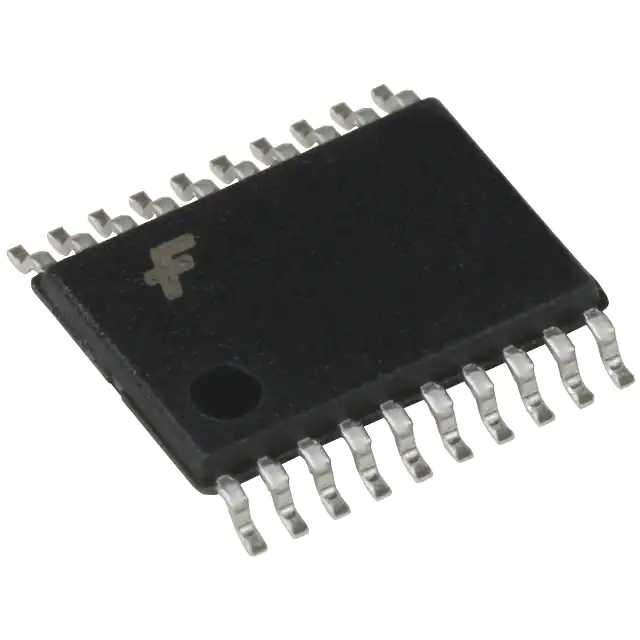

| Part Number | 74ACT240MTC | 74ACT241MTC | 74ACT240MTCX | 74ACT244MTC | 74ACT245MTC | 74ACT240MTR |
|---|---|---|---|---|---|---|
| Manufacturer | onsemi | Fairchild Semiconductor | onsemi | onsemi | onsemi | STMicroelectronics |
| Product Status | Active | Obsolete | Active | Active | Active | Obsolete |
| Logic Type | Buffer, Inverting | Buffer, Non-Inverting | Buffer, Inverting | Buffer, Non-Inverting | Transceiver, Non-Inverting | Buffer, Inverting |
| Number of Elements | 2 | 2 | 2 | 2 | 1 | 2 |
| Number of Bits per Element | 4 | 4 | 4 | 4 | 8 | 4 |
| Input Type | - | - | - | - | - | - |
| Output Type | 3-State | 3-State | 3-State | 3-State | 3-State | 3-State |
| Current - Output High, Low | 24mA, 24mA | 24mA, 24mA | 24mA, 24mA | 24mA, 24mA | 24mA, 24mA | 24mA, 24mA |
| Voltage - Supply | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V | 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -55°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) | 20-TSSOP (0.173", 4.40mm Width) | 20-TSSOP (0.173", 4.40mm Width) | 20-TSSOP (0.173", 4.40mm Width) | 20-TSSOP (0.173", 4.40mm Width) | 20-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 20-TSSOP | 20-TSSOP | 20-TSSOP | 20-TSSOP | 20-TSSOP | 20-SO |
