| Part Number | 74ACT174PC | 74ACT175PC | 74ACT174SC | 74ACT374PC | 74ACT574PC | 74ACT74PC |
|---|---|---|---|---|---|---|
| Manufacturer | onsemi | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Function | Master Reset | Master Reset | Master Reset | Standard | Standard | Set(Preset) and Reset |
| Type | D-Type | D-Type | D-Type | D-Type | D-Type | D-Type |
| Output Type | Non-Inverted | Complementary | Non-Inverted | Tri-State, Non-Inverted | Tri-State, Non-Inverted | Complementary |
| Number of Elements | 1 | 1 | 1 | 1 | 1 | 2 |
| Number of Bits per Element | 6 | 4 | 6 | 8 | 8 | 1 |
| Clock Frequency | 200 MHz | 236 MHz | 200 MHz | 160 MHz | 110 MHz | 210 MHz |
| Max Propagation Delay @ V, Max CL | 10.5ns @ 5V, 50pF | 11ns @ 5V, 50pF | 10.5ns @ 5V, 50pF | 10ns @ 5V, 50pF | 11ns @ 5V, 50pF | 11ns @ 5V, 50pF |
| Trigger Type | Positive Edge | Positive Edge | Positive Edge | Positive Edge | Positive Edge | Positive Edge |
| Current - Output High, Low | 24mA, 24mA | 24mA, 24mA | 24mA, 24mA | 24mA, 24mA | 24mA, 24mA | 24mA, 24mA |
| Voltage - Supply | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V |
| Current - Quiescent (Iq) | 40 µA | 40 µA | 40 µA | 40 µA | 40 µA | 20 µA |
| Input Capacitance | 4.5 pF | 4.5 pF | 4.5 pF | 4.5 pF | 4.5 pF | 4.5 pF |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Through Hole | Through Hole | Surface Mount | Through Hole | Through Hole | Through Hole |

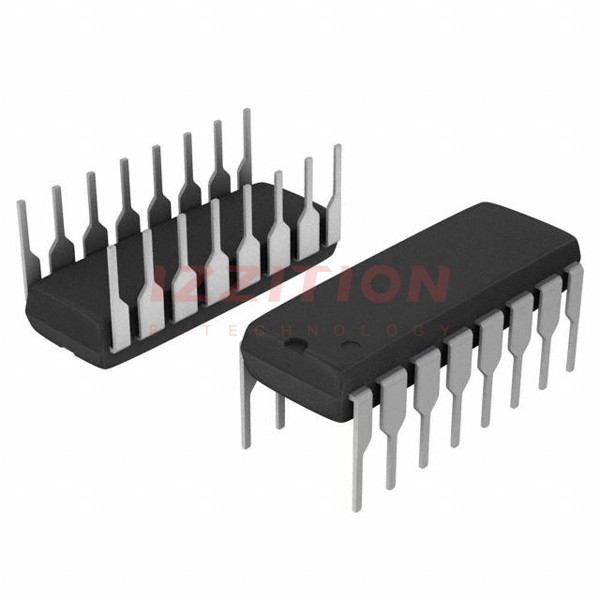

| Supplier Device Package | 16-PDIP | 16-PDIP | 16-SOIC | 20-PDIP | 20-PDIP | 14-MDIP |
| Package / Case | 16-DIP (0.300", 7.62mm) | 16-DIP (0.300", 7.62mm) | 16-SOIC (0.154", 3.90mm Width) | 20-DIP (0.300", 7.62mm) | 20-DIP (0.300", 7.62mm) | 14-DIP (0.300", 7.62mm) |
