6N138V
  • Share:

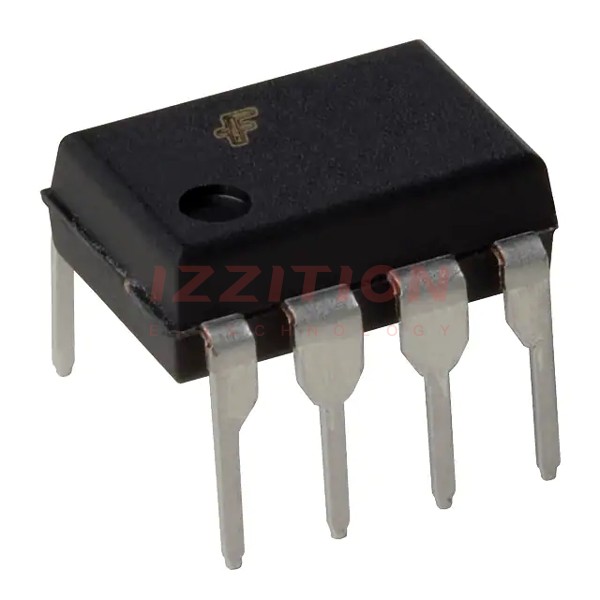

onsemi 6N138V

Manufacturer No:
6N138V
Manufacturer:
onsemi
Package:
Tube
Datasheet:
6N138V Datasheet
ECAD Model:
-
Description:
OPTOISO 2.5KV DARL W/BASE 8DIP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Number of Channels:1
Voltage - Isolation:2500Vrms
Current Transfer Ratio (Min):300% @ 1.6mA
Current Transfer Ratio (Max):-
Turn On / Turn Off Time (Typ):1.5µs, 7µs
Rise / Fall Time (Typ):-
Input Type:DC
Output Type:Darlington with Base
Voltage - Output (Max):7V
Current - Output / Channel:60mA
Voltage - Forward (Vf) (Typ):1.3V
Current - DC Forward (If) (Max):20 mA
Vce Saturation (Max):-
Operating Temperature:-40°C ~ 85°C
Mounting Type:Through Hole
Package / Case:8-DIP (0.300", 7.62mm)
Supplier Device Package:8-DIP
0 Remaining View Similar

In Stock

-
301

Please send RFQ , we will respond immediately.
