onsemi-6N137VM - Optoisolators - Logic Output Product Specifications and Latest Quotes

Number of Channels:	1
Inputs - Side 1/Side 2:	1/0
Voltage - Isolation:	5000Vrms
Common Mode Transient Immunity (Min):	10kV/µs (Typ)
Input Type:	DC
Output Type:	Open Collector
Current - Output / Channel:	50 mA
Data Rate:	10Mbps
Propagation Delay tpLH / tpHL (Max):	75ns, 75ns
Rise / Fall Time (Typ):	30ns, 10ns
Voltage - Forward (Vf) (Typ):	1.45V
Current - DC Forward (If) (Max):	50mA
Voltage - Supply:	4.5V ~ 5.5V
Operating Temperature:	-40°C ~ 100°C
Mounting Type:	Through Hole
Package / Case:	8-DIP (0.300", 7.62mm)
Supplier Device Package:	8-DIP

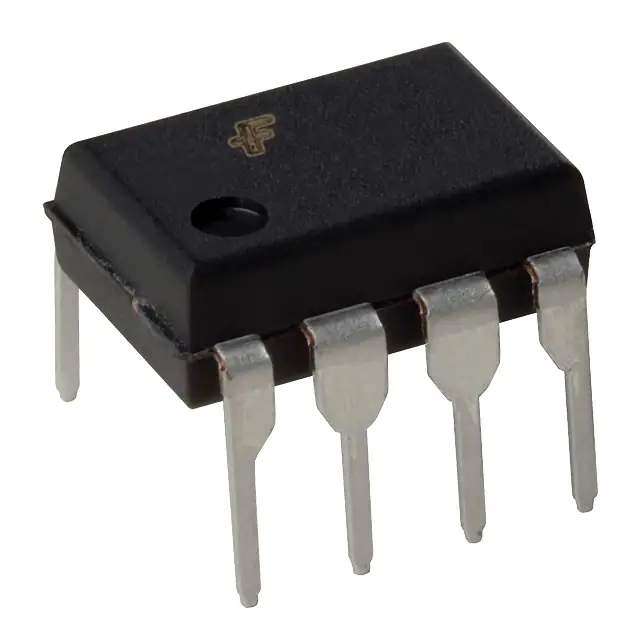

onsemi 6N137VM
