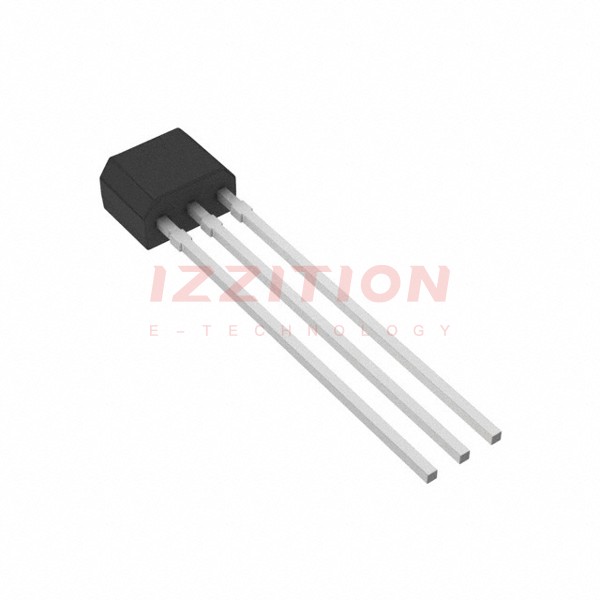

| Part Number | 5LN01SP | 5LP01SP |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Obsolete | Obsolete |
| FET Type | N-Channel | P-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 50 V | 50 V |
| Current - Continuous Drain (Id) @ 25°C | 100mA (Ta) | 70mA (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.5V, 4V | 1.5V, 4V |
| Rds On (Max) @ Id, Vgs | 7.8Ohm @ 50mA, 4V | 23Ohm @ 40mA, 4V |
| Vgs(th) (Max) @ Id | 1.3V @ 100µA | - |
| Gate Charge (Qg) (Max) @ Vgs | 1.57 nC @ 10 V | 1.4 nC @ 10 V |
| Vgs (Max) | ±10V | ±10V |
| Input Capacitance (Ciss) (Max) @ Vds | 6.6 pF @ 10 V | 7.4 pF @ 10 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 250mW (Ta) | 250mW (Ta) |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole |
| Supplier Device Package | 3-SPA | 3-SPA |
| Package / Case | SC-72 | SC-72 |
