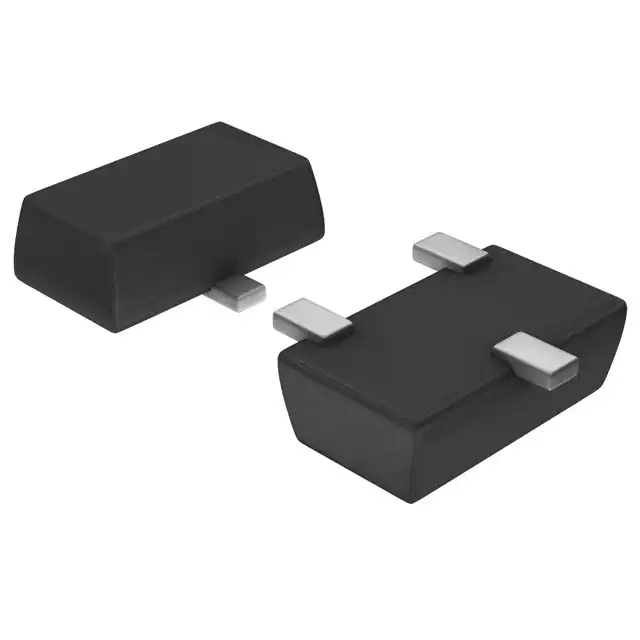

| Part Number | 5HN01SS-TL-H | 5LN01SS-TL-H | 5HN01SS-TL-E |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete |
| FET Type | - | N-Channel | - |
| Technology | - | MOSFET (Metal Oxide) | - |
| Drain to Source Voltage (Vdss) | - | 50 V | - |
| Current - Continuous Drain (Id) @ 25°C | - | 100mA (Ta) | - |
| Drive Voltage (Max Rds On, Min Rds On) | - | 1.5V, 4V | - |
| Rds On (Max) @ Id, Vgs | - | 7.8Ohm @ 50mA, 4V | - |
| Vgs(th) (Max) @ Id | - | - | - |
| Gate Charge (Qg) (Max) @ Vgs | - | 1.57 nC @ 10 V | - |
| Vgs (Max) | - | ±10V | - |
| Input Capacitance (Ciss) (Max) @ Vds | - | 6.6 pF @ 10 V | - |
| FET Feature | - | - | - |
| Power Dissipation (Max) | - | 150mW (Ta) | - |
| Operating Temperature | - | 150°C (TJ) | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 3-SSFP | 3-SSFP | 3-SSFP |
| Package / Case | 3-SMD, Flat Leads | SC-81 | 3-SMD, Flat Leads |
