onsemi-55GN01FA-TL-H - Transistors - Bipolar (BJT) - RF Product Specifications and Latest Quotes

Transistor Type:	NPN
Voltage - Collector Emitter Breakdown (Max):	10V
Frequency - Transition:	4.5GHz ~ 5.5GHz
Noise Figure (dB Typ @ f):	1.9dB @ 1GHz
Gain:	11dB ~ 19dB @ 1GHz ~ 400MHz
Power - Max:	250mW
DC Current Gain (hFE) (Min) @ Ic, Vce:	100 @ 10mA, 5V
Current - Collector (Ic) (Max):	70mA
Operating Temperature:	150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	SC-81
Supplier Device Package:	3-SSFP

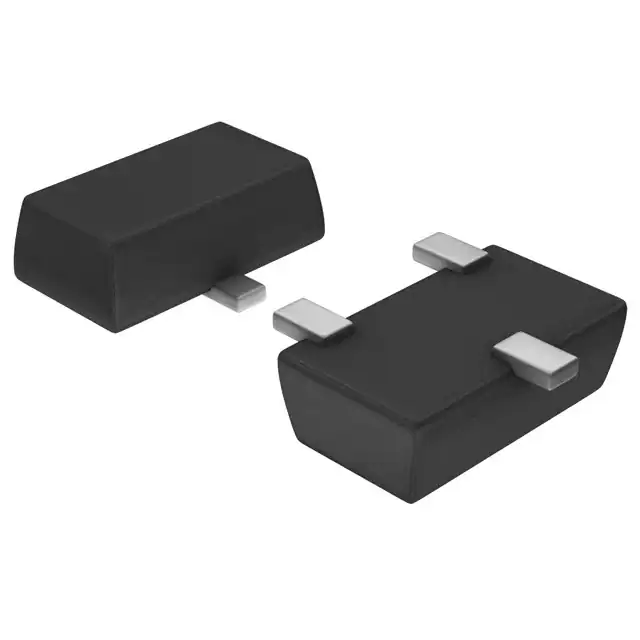

onsemi 55GN01FA-TL-H
