4N27SM
  • Share:

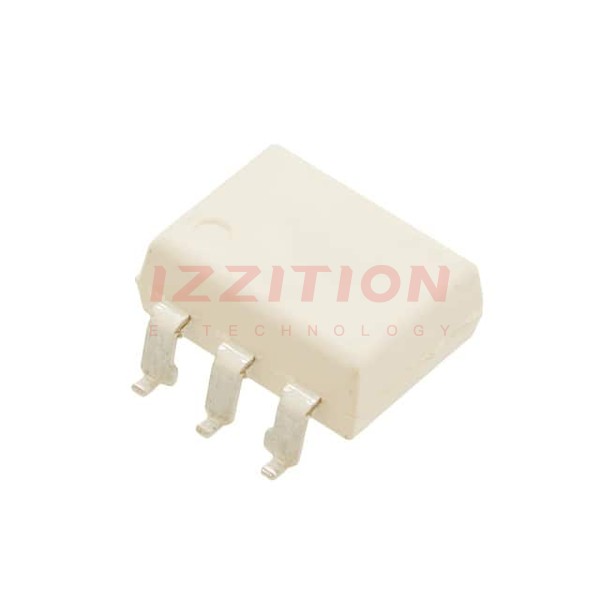

onsemi 4N27SM

Manufacturer No:
4N27SM
Manufacturer:
onsemi
Package:
Tube
Datasheet:
4N27SM Datasheet
ECAD Model:
-
Description:
OPTOISO 4.17KV TRANS W/BASE 6SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Number of Channels:1
Voltage - Isolation:4170Vrms
Current Transfer Ratio (Min):10% @ 10mA
Current Transfer Ratio (Max):-
Turn On / Turn Off Time (Typ):2µs, 2µs
Rise / Fall Time (Typ):-
Input Type:DC
Output Type:Transistor with Base
Voltage - Output (Max):30V
Current - Output / Channel:-
Voltage - Forward (Vf) (Typ):1.18V
Current - DC Forward (If) (Max):60 mA
Vce Saturation (Max):500mV
Operating Temperature:-40°C ~ 100°C
Mounting Type:Surface Mount
Package / Case:6-SMD, Gull Wing
Supplier Device Package:6-SMD
0 Remaining View Similar

In Stock

$0.65
1,468

Please send RFQ , we will respond immediately.
