onsemi-4885-MPSA42 - Transistors - Bipolar (BJT) - Single Product Specifications and Latest Quotes

Transistor Type:	NPN
Current - Collector (Ic) (Max):	500 mA
Voltage - Collector Emitter Breakdown (Max):	300 V
Vce Saturation (Max) @ Ib, Ic:	500mV @ 2mA, 20mA
Current - Collector Cutoff (Max):	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:	40 @ 30mA, 10V
Power - Max:	625 mW
Frequency - Transition:	50MHz
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole

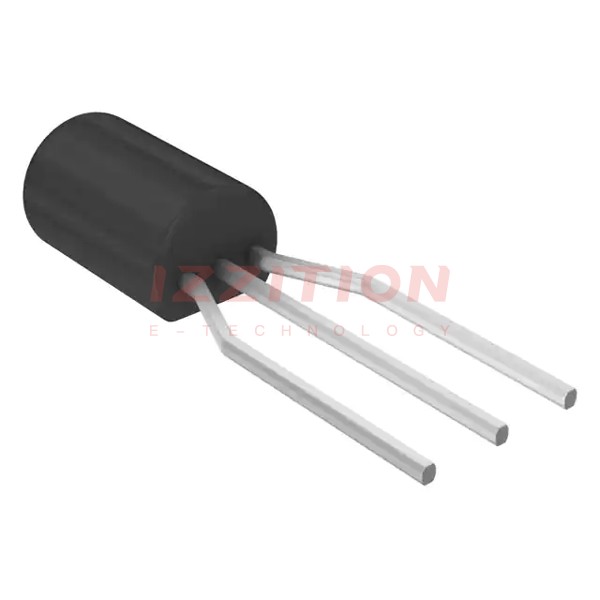

Package / Case:	TO-226-3, TO-92-3 Long Body
Supplier Device Package:	TO-92 (TO-226)

onsemi 4885-MPSA42
