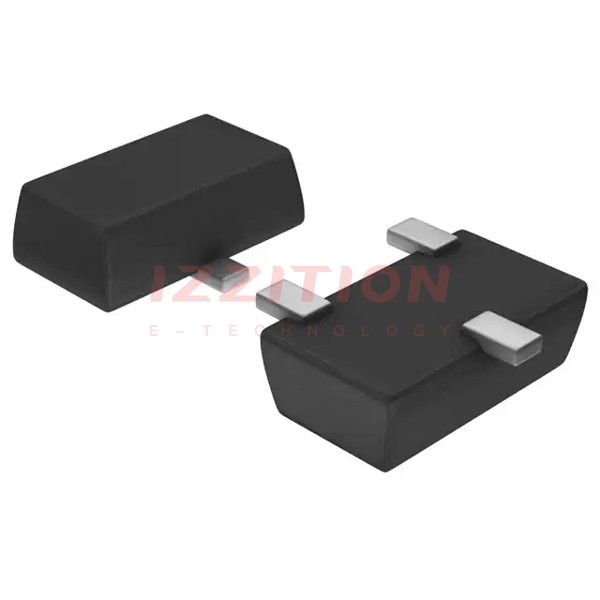

| Part Number | 3LP01SS-TL-EX | 3LP01SS-TL-E |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Obsolete | Obsolete |
| FET Type | P-Channel | P-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 100mA (Ta) | 100mA (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.5V, 4V | 1.5V, 4V |
| Rds On (Max) @ Id, Vgs | 10.4Ohm @ 50mA, 4V | 10.4Ohm @ 50mA, 4V |
| Vgs(th) (Max) @ Id | - | - |
| Gate Charge (Qg) (Max) @ Vgs | 1.43 nC @ 10 V | 1.43 nC @ 10 V |
| Vgs (Max) | ±10V | ±10V |
| Input Capacitance (Ciss) (Max) @ Vds | 7.5 pF @ 10 V | 7.5 pF @ 10 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 150mW (Ta) | 150mW (Ta) |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | 3-SSFP | 3-SSFP |
| Package / Case | SC-81 | SC-81 |
