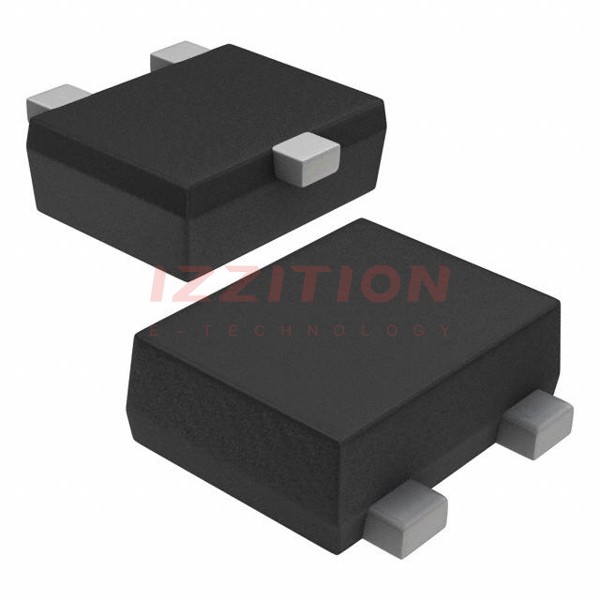

| Part Number | 30A02MH-TL-H | 30C02MH-TL-H | 30A02MH-TL-E |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Active | Obsolete | Active |
| Transistor Type | PNP | NPN | PNP |
| Current - Collector (Ic) (Max) | 700 mA | 700 mA | 700 mA |
| Voltage - Collector Emitter Breakdown (Max) | 30 V | 30 V | 30 V |
| Vce Saturation (Max) @ Ib, Ic | 220mV @ 10mA, 200mA | 190mV @ 10mA, 200mA | 220mV @ 10mA, 200mA |
| Current - Collector Cutoff (Max) | 100nA (ICBO) | 100nA (ICBO) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 200 @ 10mA, 2V | 300 @ 50mA, 2V | 200 @ 10mA, 2V |
| Power - Max | 600 mW | 600 mW | 600 mW |
| Frequency - Transition | 520MHz | 540MHz | 520MHz |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SC-70, SOT-323 | SC-70, SOT-323 | 3-SMD, Flat Lead |
| Supplier Device Package | 3-MCPH | 3-MCPH | 3-MCPH |
