Please send RFQ , we will respond immediately.

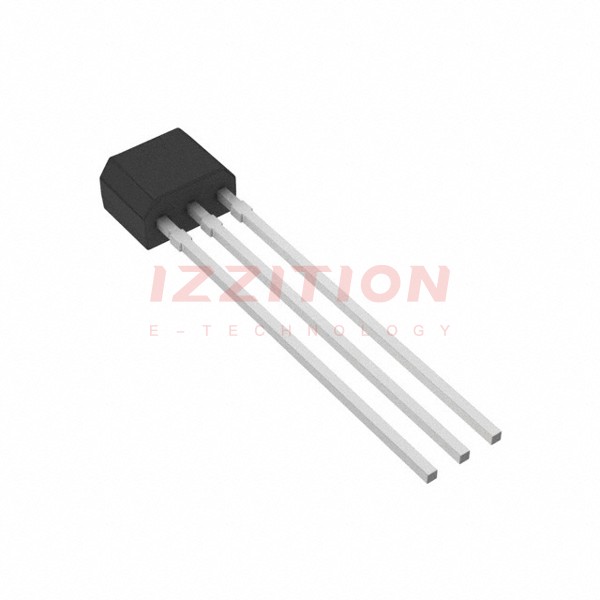

| Part Number | 2SK715W-AC | 2SK715U-AC | 2SK715V-AC |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel |
| Voltage - Breakdown (V(BR)GSS) | - | - | - |
| Drain to Source Voltage (Vdss) | 15 V | 15 V | 15 V |
| Current - Drain (Idss) @ Vds (Vgs=0) | 14.5 mA @ 5 V | 7.3 mA @ 5 V | 10 mA @ 5 V |
| Current Drain (Id) - Max | 50 mA | 50 mA | 50 mA |
| Voltage - Cutoff (VGS off) @ Id | 600 mV @ 100 µA | 600 mV @ 100 µA | 600 mV @ 100 µA |
| Input Capacitance (Ciss) (Max) @ Vds | 10pF @ 5V | 10pF @ 5V | 10pF @ 5V |
| Resistance - RDS(On) | - | - | - |
| Power - Max | 300 mW | 300 mW | 300 mW |
| Operating Temperature | 125°C (TJ) | 125°C (TJ) | 125°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | SC-72 | SC-72 | SC-72 |
| Supplier Device Package | 3-SPA | 3-SPA | 3-SPA |
