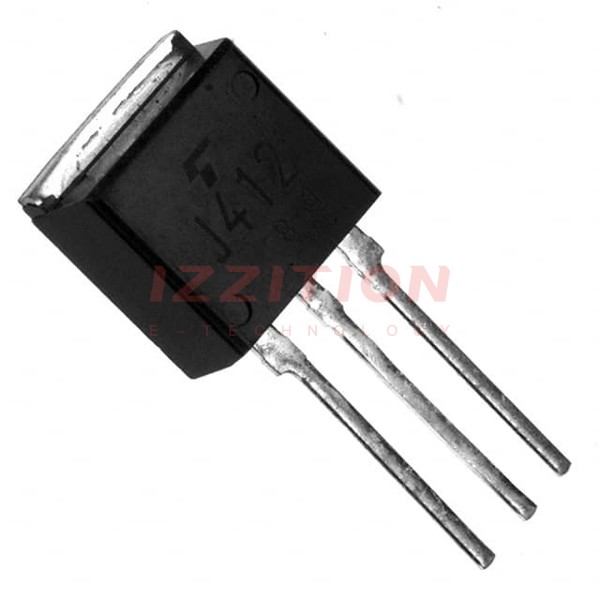

| Part Number | 2SK4066-E | 2SK4065-E | 2SK4066-1E |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V | 75 V | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 100A (Ta) | 100A (Ta) | 100A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4V, 10V | 4V, 10V | 4V, 10V |
| Rds On (Max) @ Id, Vgs | 4.7mOhm @ 50A, 10V | 6mOhm @ 50A, 10V | 4.7mOhm @ 50A, 10V |
| Vgs(th) (Max) @ Id | - | - | - |
| Gate Charge (Qg) (Max) @ Vgs | 220 nC @ 10 V | 220 nC @ 10 V | 220 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 12500 pF @ 20 V | 12200 pF @ 20 V | 12500 pF @ 20 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 1.65W (Ta), 90W (Tc) | 1.65W (Ta), 90W (Tc) | 1.65W (Ta), 90W (Tc) |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | SMP | SMP | TO-262-3 |
| Package / Case | TO-220-3, Short Tab | TO-220-3, Short Tab | TO-262-3 Long Leads, I²Pak, TO-262AA |
