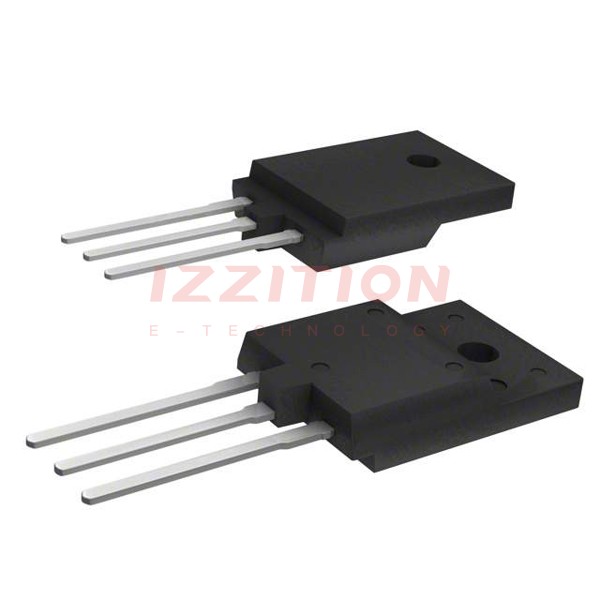

| Part Number | 2SK3748-1E | 2SK3746-1E | 2SK3747-1E |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 1500 V | 1500 V | 1500 V |
| Current - Continuous Drain (Id) @ 25°C | 4A (Ta) | 2A (Ta) | 2A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 7Ohm @ 2A, 10V | 13Ohm @ 1A, 10V | 13Ohm @ 1A, 10V |
| Vgs(th) (Max) @ Id | - | - | - |
| Gate Charge (Qg) (Max) @ Vgs | 80 nC @ 10 V | 37.5 nC @ 10 V | 37.5 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±35V |
| Input Capacitance (Ciss) (Max) @ Vds | 790 pF @ 30 V | 380 pF @ 30 V | 380 pF @ 30 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 3W (Ta), 65W (Tc) | 2.5W (Ta), 110W (Tc) | 3W (Ta), 50W (Tc) |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | TO-3PF-3 | TO-3P-3L | TO-3PF-3 |
| Package / Case | SC-94 | TO-3P-3, SC-65-3 | SC-94 |
