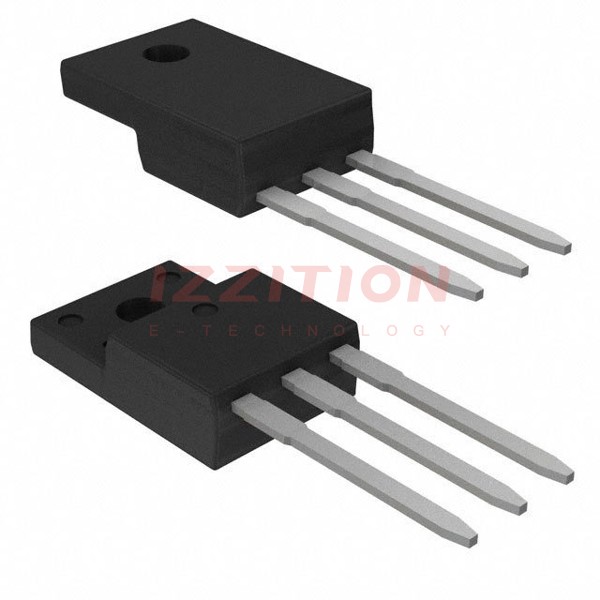

| Part Number | 2SK3703-1E | 2SK3707-1E |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 30A (Ta) | 20A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4V, 10V | 4V, 10V |
| Rds On (Max) @ Id, Vgs | 26mOhm @ 15A, 10V | 60mOhm @ 10A, 10V |
| Vgs(th) (Max) @ Id | - | - |
| Gate Charge (Qg) (Max) @ Vgs | 40 nC @ 10 V | 44 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1780 pF @ 20 V | 2150 pF @ 20 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 2W (Ta), 25W (Tc) | 2W (Ta), 25W (Tc) |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole |
| Supplier Device Package | TO-220F-3SG | TO-220F-3SG |
| Package / Case | TO-220-3 Full Pack | TO-220-3 Full Pack |
