Please send RFQ , we will respond immediately.

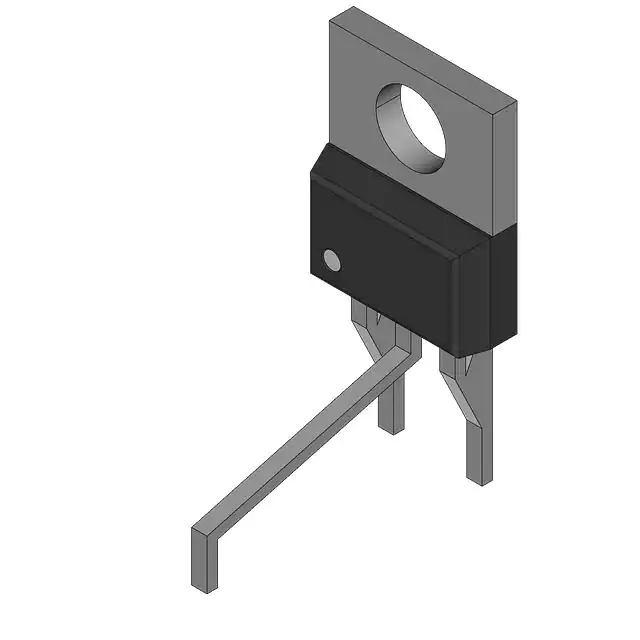

| Part Number | 2SD1682T | 2SD1683T | 2SD1682S |
|---|---|---|---|
| Manufacturer | onsemi | Fairchild Semiconductor | onsemi |
| Product Status | Active | Obsolete | Active |
| Transistor Type | - | NPN | - |
| Current - Collector (Ic) (Max) | - | 4 A | - |
| Voltage - Collector Emitter Breakdown (Max) | - | 50 V | - |
| Vce Saturation (Max) @ Ib, Ic | - | 500mV @ 100mA, 2A | - |
| Current - Collector Cutoff (Max) | - | 1µA (ICBO) | - |
| DC Current Gain (hFE) (Min) @ Ic, Vce | - | 200 @ 100mA, 2V | - |
| Power - Max | - | 1.5 W | - |
| Frequency - Transition | - | 150MHz | - |
| Operating Temperature | - | 150°C (TJ) | - |
| Mounting Type | - | Through Hole | - |
| Package / Case | - | TO-225AA, TO-126-3 | - |
| Supplier Device Package | - | TO-225-3 | - |
