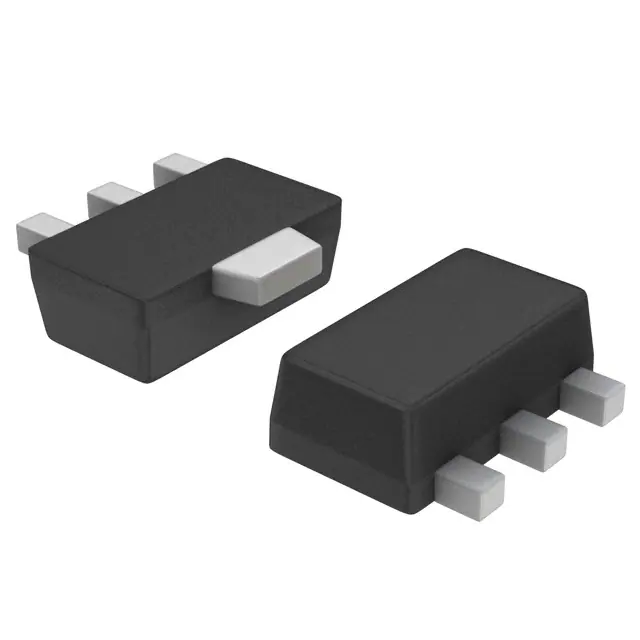

| Part Number | 2SD1628F-TD-H | 2SD1628G-TD-H | 2SD1628F-TD-E |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete |
| Transistor Type | NPN | NPN | NPN |
| Current - Collector (Ic) (Max) | 5 A | 5 A | 5 A |
| Voltage - Collector Emitter Breakdown (Max) | 20 V | 20 V | 20 V |
| Vce Saturation (Max) @ Ib, Ic | 500mV @ 60mA, 3A | 500mV @ 60mA, 3A | 500mV @ 60mA, 3A |
| Current - Collector Cutoff (Max) | 100nA (ICBO) | 100nA (ICBO) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 120 @ 500mA, 2V | 120 @ 500mA, 2V | 160 @ 500mA, 2V |
| Power - Max | 500 mW | 500 mW | 500 mW |
| Frequency - Transition | 120MHz | 120MHz | 120MHz |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | TO-243AA | TO-243AA | TO-243AA |
| Supplier Device Package | PCP | PCP | PCP |
