| Part Number | 2SD1207U | 2SD1207S | 2SD1207T |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete |
| Transistor Type | NPN | NPN | NPN |
| Current - Collector (Ic) (Max) | 2 A | 2 A | 2 A |
| Voltage - Collector Emitter Breakdown (Max) | 50 V | 50 V | 50 V |
| Vce Saturation (Max) @ Ib, Ic | 400mV @ 50mA, 1A | 400mV @ 50mA, 1A | 400mV @ 50mA, 1A |
| Current - Collector Cutoff (Max) | 100nA (ICBO) | 100nA (ICBO) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 280 @ 100mA, 2V | 140 @ 100mA, 2V | 200 @ 100mA, 2V |
| Power - Max | 1 W | 1 W | 1 W |
| Frequency - Transition | 150MHz | 150MHz | 150MHz |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |

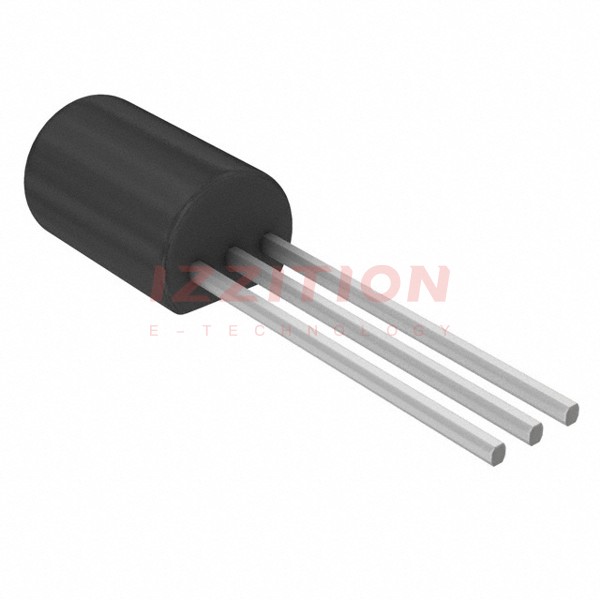

| Package / Case | TO-226-3, TO-92-3 Long Body | TO-226-3, TO-92-3 Long Body | TO-226-3, TO-92-3 Long Body |
| Supplier Device Package | 3-MP | 3-MP | 3-MP |
