onsemi-2SD1207S - Transistors - Bipolar (BJT) - Single Product Specifications and Latest Quotes

Part Number	2SD1207S	2SD1247S	2SD1207T	2SD1207U
Manufacturer	onsemi	onsemi	onsemi	onsemi
Product Status	Obsolete	Active	Obsolete	Obsolete
Transistor Type	NPN	-	NPN	NPN
Current - Collector (Ic) (Max)	2 A	-	2 A	2 A
Voltage - Collector Emitter Breakdown (Max)	50 V	-	50 V	50 V
Vce Saturation (Max) @ Ib, Ic	400mV @ 50mA, 1A	-	400mV @ 50mA, 1A	400mV @ 50mA, 1A
Current - Collector Cutoff (Max)	100nA (ICBO)	-	100nA (ICBO)	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	140 @ 100mA, 2V	-	200 @ 100mA, 2V	280 @ 100mA, 2V
Power - Max	1 W	-	1 W	1 W
Frequency - Transition	150MHz	-	150MHz	150MHz
Operating Temperature	150°C (TJ)	-	150°C (TJ)	150°C (TJ)
Mounting Type	Through Hole	-	Through Hole	Through Hole
Package / Case	TO-226-3, TO-92-3 Long Body	-	TO-226-3, TO-92-3 Long Body	TO-226-3, TO-92-3 Long Body
Supplier Device Package	3-MP	-	3-MP	3-MP

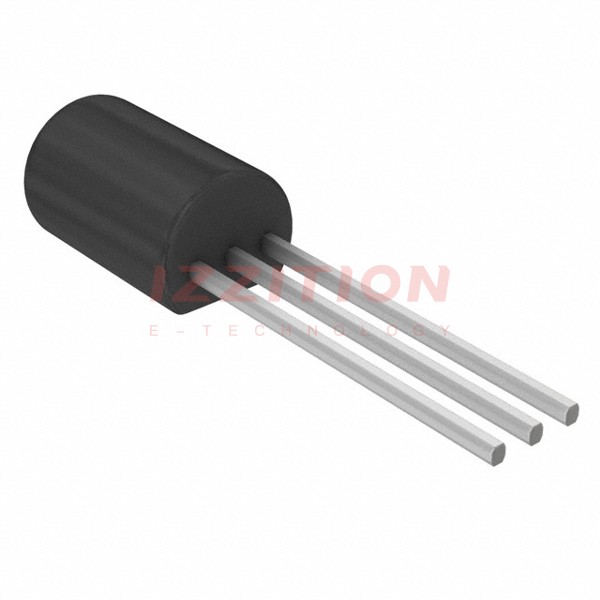

onsemi 2SD1207S

Transistor Type:	NPN
Current - Collector (Ic) (Max):	2 A
Voltage - Collector Emitter Breakdown (Max):	50 V
Vce Saturation (Max) @ Ib, Ic:	400mV @ 50mA, 1A
Current - Collector Cutoff (Max):	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:	140 @ 100mA, 2V
Power - Max:	1 W
Frequency - Transition:	150MHz
Operating Temperature:	150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-226-3, TO-92-3 Long Body
Supplier Device Package:	3-MP
