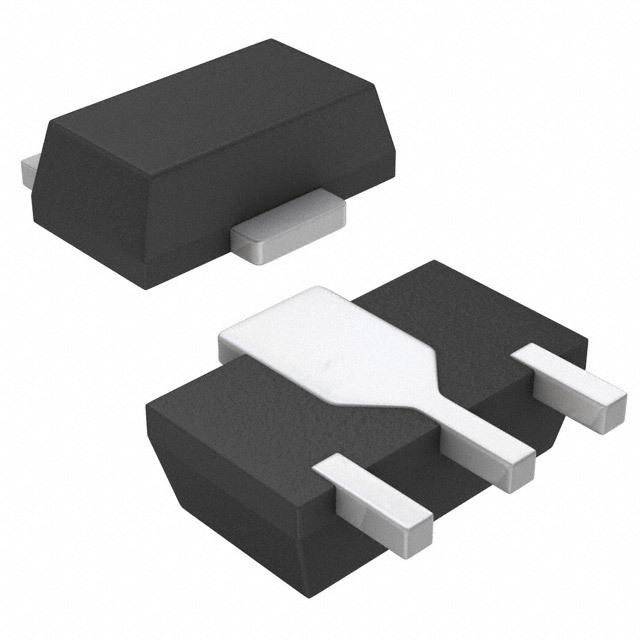

| Part Number | 2SC6096-TD-E | 2SC6096-TD-H | 2SC6094-TD-E | 2SC6095-TD-E |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| Product Status | Active | Obsolete | Obsolete | Active |
| Transistor Type | NPN | NPN | NPN | NPN |
| Current - Collector (Ic) (Max) | 2 A | 2 A | 3 A | 2.5 A |
| Voltage - Collector Emitter Breakdown (Max) | 100 V | 100 V | 60 V | 80 V |
| Vce Saturation (Max) @ Ib, Ic | 150mV @ 100mA, 1A | 150mV @ 100mA, 1A | 120mV @ 100mA, 1A | 150mV @ 50mA, 1A |
| Current - Collector Cutoff (Max) | 1µA (ICBO) | 1µA (ICBO) | 1µA (ICBO) | 1µA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 300 @ 100mA, 5V | 300 @ 100mA, 5V | 300 @ 100mA, 2V | 300 @ 100mA, 5V |
| Power - Max | 1.3 W | 1.3 W | 1.3 W | 1.3 W |
| Frequency - Transition | 300MHz | 300MHz | 390MHz | 350MHz |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | TO-243AA | TO-243AA | TO-243AA | TO-243AA |
| Supplier Device Package | PCP | PCP | PCP | PCP |
