onsemi-2SC6024-TL-E - Transistors - Bipolar (BJT) - RF Product Specifications and Latest Quotes

Transistor Type:	NPN
Voltage - Collector Emitter Breakdown (Max):	3.5V
Frequency - Transition:	14GHz
Noise Figure (dB Typ @ f):	1.2dB @ 2GHz
Gain:	9dB ~ 10.5dB
Power - Max:	120mW
DC Current Gain (hFE) (Min) @ Ic, Vce:	80 @ 15mA, 3V
Current - Collector (Ic) (Max):	35mA
Operating Temperature:	-
Mounting Type:	Surface Mount
Package / Case:	3-SMD, Flat Lead
Supplier Device Package:	3-SSFP

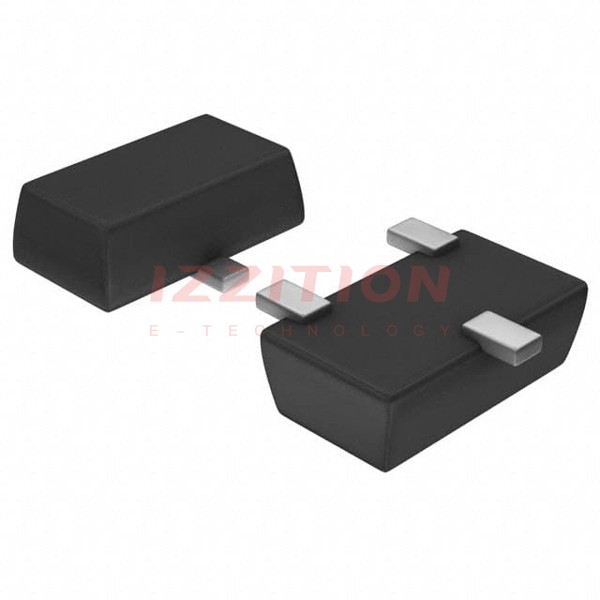

onsemi 2SC6024-TL-E
