| Part Number | 2SC5964-TD-H | 2SC5964-TD-E |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Active | Active |
| Transistor Type | NPN | NPN |
| Current - Collector (Ic) (Max) | 3 A | 3 A |
| Voltage - Collector Emitter Breakdown (Max) | 50 V | 50 V |
| Vce Saturation (Max) @ Ib, Ic | 290mV @ 100mA, 2A | 290mV @ 100mA, 2A |
| Current - Collector Cutoff (Max) | 1µA (ICBO) | 1µA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 200 @ 100mA, 2V | 200 @ 100mA, 2V |
| Power - Max | 3.5 W | 3.5 W |
| Frequency - Transition | 380MHz | 380MHz |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |

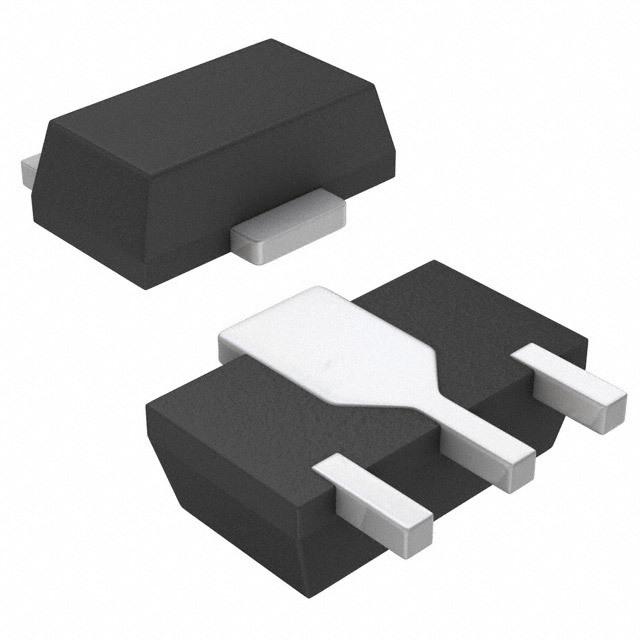

| Package / Case | TO-243AA | TO-243AA |
| Supplier Device Package | PCP | PCP |
